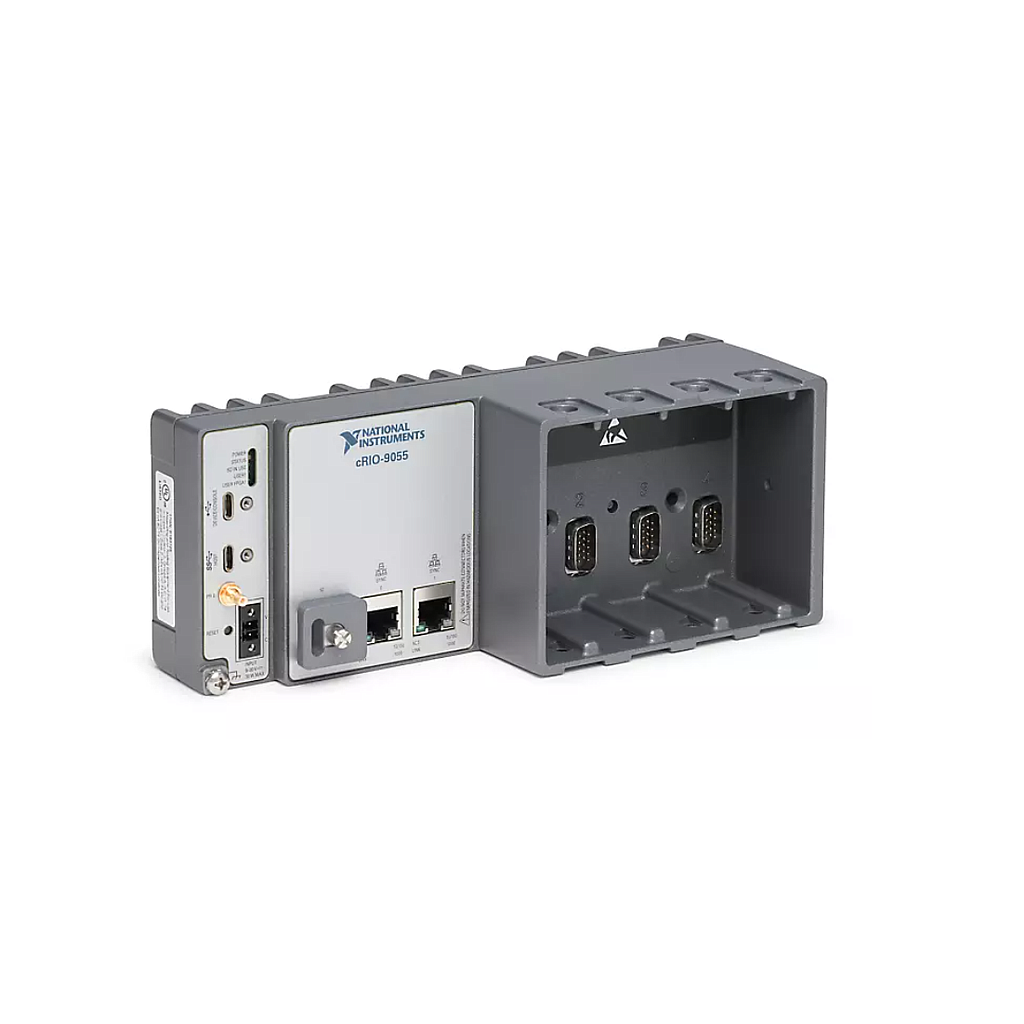

NI cRIO-9055 CompactRIO Controller (-40 °C ~ 70 °C, Artix-7 100T)

TSN Enabled: Synchronization Deterministic Communication

Slot Count: 4

Operating Temperature Range: -40 °C to 70 °C

Programming Method: LabVIEW FPGA NI-DAQmx

Processor Core: 1.33 GHz Dual Core Intel Atom

FPGA: Artix-7 100T

Conformal Coated: No

Hard Drive Memory Size: 4 GB

RAM Size: 2 GB

Number of Ethernet Ports on Controller: 2

GigE Vision Support: Yes

Combines a processor running NI Linux Real-Time, a programmable FPGA, and modular I/O with vision, motion, and display capabilities.

The CompactRIO Controller is a rugged, reliable, high-performance, industrial-grade embedded controller with industry-standard certifications. It is ideal for applications that need waveform acquisition, high-speed control or signal processing, hardware algorithm acceleration, hardware reliable tasks, or unique timing and triggering. Some models offer NI-DAQmx driver support and Time Sensitive Networking (TSN), which enables deterministic communication and synchronized measurements across standard Ethernet networks. This controller runs NI Linux Real‐Time, which combines the performance of a real‐time OS with the openness of Linux. You can use LabVIEW to create, debug, and deploy logic to the Xilinx FPGA and ARM or Intel processor.

The registered trademark Linux® is used pursuant to a sublicense from LMI, the exclusive licensee of Linus Torvalds, owner of the mark on a worldwide basis.
