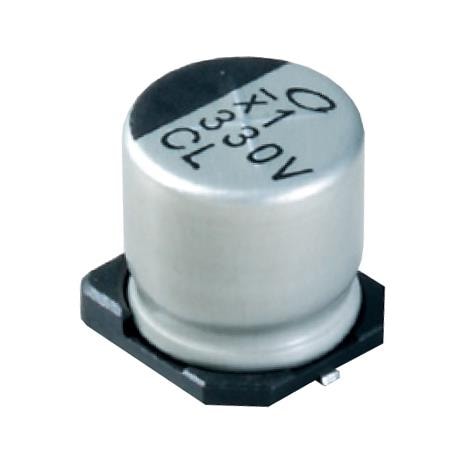

Nichicon UCL0J221MCL1GS Aluminum Electrolytic Capacitors, Chip Type, Low Impedance 6.3V220 uF105CSMT AEC-Q200
ManufacturerNichicon(View more products from this manufacturer)
ModelUCL0J221MCL1GS
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 2000 Hour
Height: 6.6 mm
Length: 5.8 mm
Diameter: 6.3 mm
Tolerance: 20 %
Capacitance: 220 uF
Lead Spacing: 2.2 mm
REACH - SVHC: Details
Qualification: AEC-Q200
Ripple Current: 300 mA
Leakage Current: 3 uA
Termination Style: SMD/SMT
Voltage Rating DC: 6.3 VDC
Dissipation Factor DF: 0.26
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
