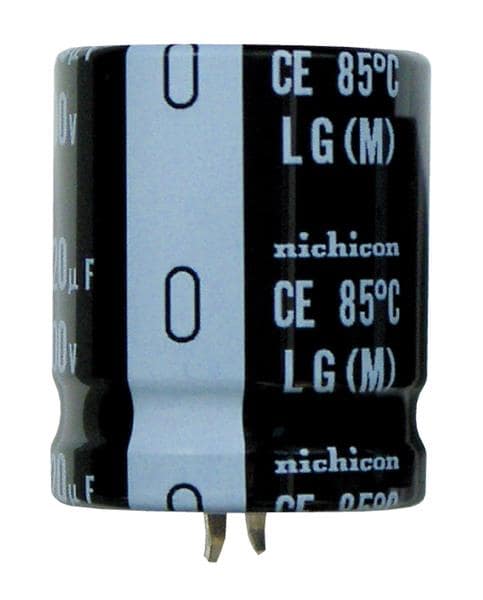

Nichicon LLG2W151MELA25 General Purpose Electrolytic Capacitors 450Volts 150uF 20% 85 Degree
ManufacturerNichicon(View more products from this manufacturer)
ModelLLG2W151MELA25
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 25 mm
Diameter: 25 mm
Tolerance: 20 %
Capacitance: 150 uF
Unit Weight: 20.700 g
Lead Spacing: 10 mm
Number of Pins: 2 Pin
Ripple Current: 1.04 A
Test Frequency: 120 Hz
Leakage Current: 770 uA
Termination Style: Snap In
Voltage Rating DC: 450 VDC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
