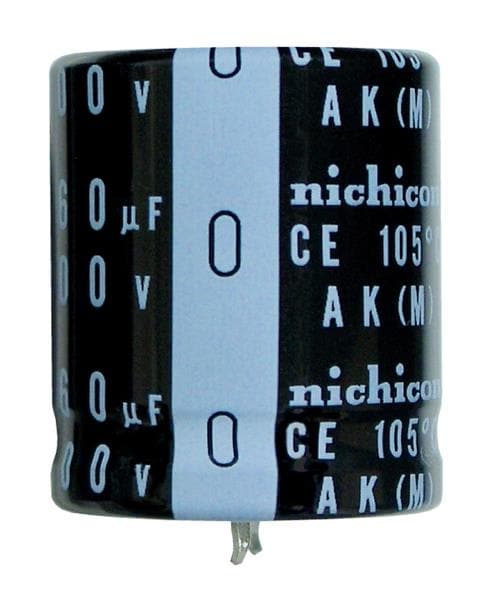

Nichicon LAK2G151MELZ45 General Purpose Electrolytic Capacitors 400Volts 150uF 20% 105 Degree
ManufacturerNichicon(View more products from this manufacturer)
ModelLAK2G151MELZ45
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 45 mm
Diameter: 22 mm
Tolerance: 20 %
Capacitance: 150 uF
Unit Weight: 28 g
Lead Spacing: 10 mm
Number of Pins: 2 Pin
Ripple Current: 700 mA
Test Frequency: 120 Hz
Leakage Current: 730 uA
Termination Style: Snap In
Voltage Rating DC: 400 VDC
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 25 C
