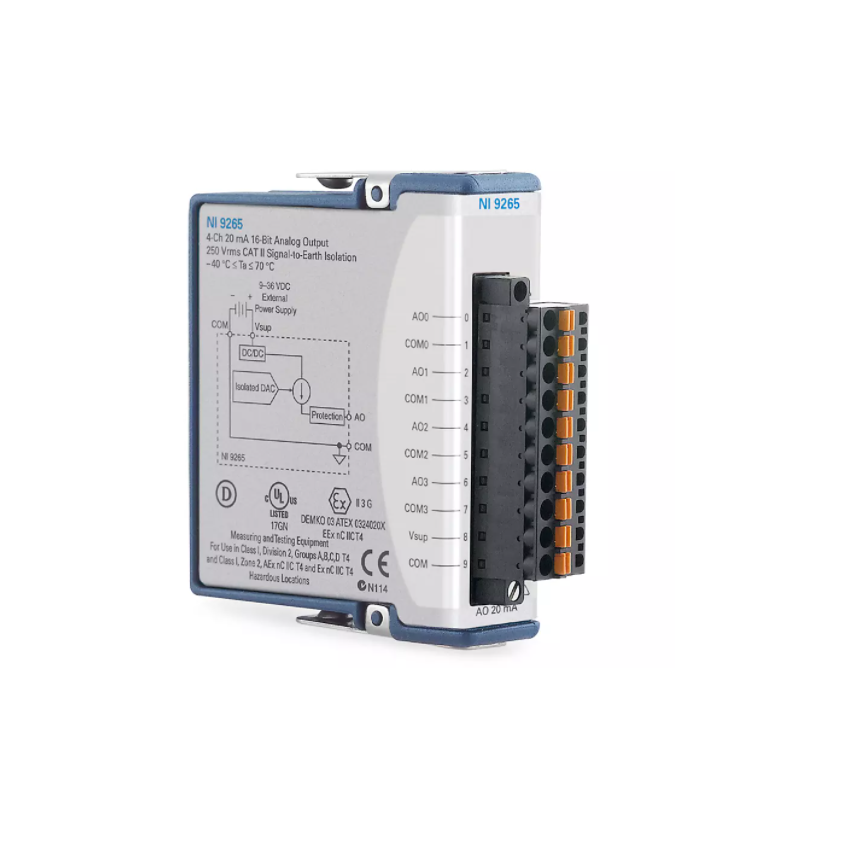

NI NI-9265 C Series Current Output Module (Spring Terminal, 4ch, 100 kS/s/ch, 0~20 mA, 16-Bit)

Number of Analog Output Channels: 4

Maximum Update Rate: 100 kS/s/ch

Front Connection Type: Spring Terminal

Conformal Coated: No

Enclosed: Yes

Supported Hardware Platform: CompactDAQ CompactRIO

Controls industrial current-driven actuators at high rates as part of CompactDAQ or CompactRIO systems.

The C Series Current Output Module features up to eight channels of simultaneous analog output. You can choose between enclosed and non-enclosed modules. Additionally, the C Series Current Output Module has built-in open-loop detection. This detection generates an interrupt in software when an open loop is detected, zeros outputs to ensure safety, and avoids driving actuators at system power-on. The C Series Current Output Module requires an external power supply and includes a channel-to-earth ground double isolation barrier for safety and noise immunity.The C Series Current Output Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
