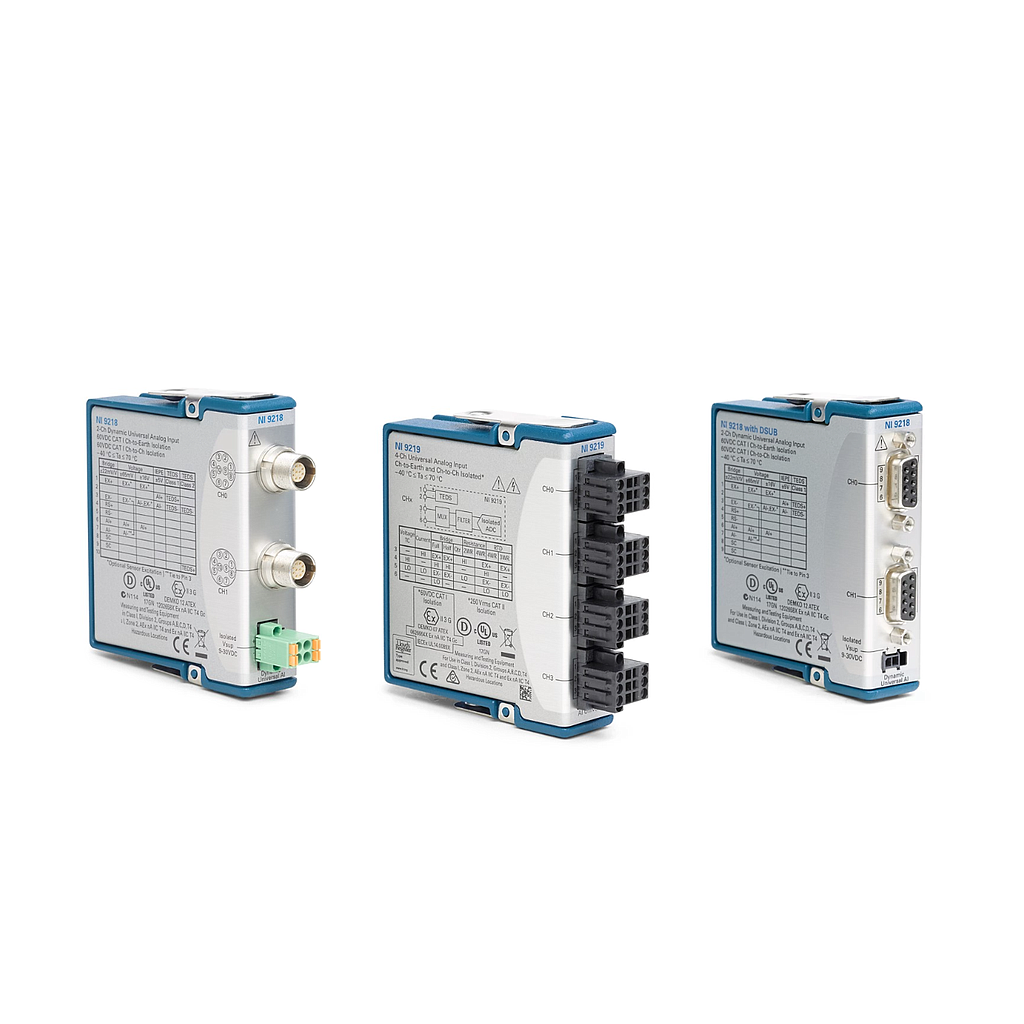

NI NI-9219 C Series Universal Analog Input Module (100 S/s/ch, 250 Vrms)

Name: NI NI-9219 C Series Universal Analog Input Module (100 S/s/ch, 250 Vrms)
Brand: NI

ManufacturerNI(View more products from this manufacturer)

ModelNI-9219

P/N785994-01

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Maximum Number of Differential Analog Input Channels: 4

Maximum Sample Rate: 100 S/s/ch

Analog Input Isolation: 250 Vrms Ch-Ch Isolation

Supported Sensor Type: Bridge RTD Thermocouple

Electrical Signal Measured: Current Voltage

Front Connection Type: Spring Terminal (qty 4)

Conformal Coated: No

Enclosed: Yes

Supported Hardware Platform: CompactDAQ CompactRIO

Provides analog input channels for voltage, current, temperature, and strain measurements in CompactDAQ or CompactRIO systems.

The C Series Universal Analog Input Module helps you perform multi-purpose measurements. This module includes built-in support for accelerometer, powered sensor, full-bridge, and voltage measurements as well as quarter-bridge, half-bridge, 60 V, and current measurements using measurement-specific adapters. You also can choose options to measure signals from sensors such as strain gages, resistance temperature detectors (RTDs), thermocouples, load cells, and other powered sensors.The C Series Universal Analog Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.

Datasheet
