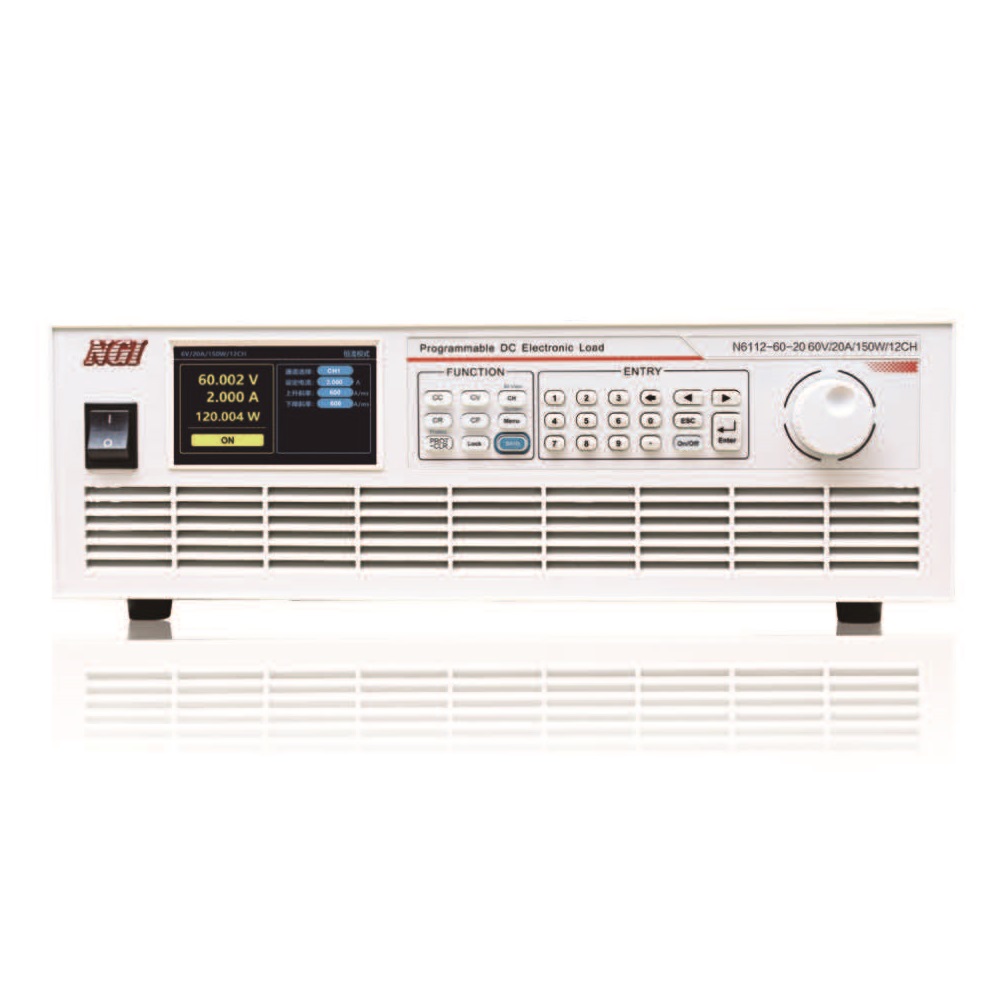

NGI N6112-60-20 Programmable DC Electronic Load (60V, 20A, 150W)

Voltage: 60V/CH

Current: 20A/CH

Power: 150W/CH

Min operating voltage: 1V@20A

Channel: 12CH

CC mode

Range: 0~20A

Setting Resolution: 1mA

Setting Accuracy (23±5℃): 0.05%+0.1%F.S

CV mode

Range: 0~60V

Setting Resolution: 1mV

Setting Accuracy: (23±5℃) 0.05%+0.05%F.S.

CP mode

Range: 0~150W

Setting Accuracy (23±5℃): 0.15%+0.15%F.S

CR mode

Range: 50mΩ~1kΩ

Setting Accuracy (23±5℃): 0.15%+10μS

Current Measurement

Range: 0~20A

Readback Resolution: 1mA

Readback Accuracy (23±5℃):0.05%+0.1%F.S.

Voltage Measurement

Range: 0~60V

Readback Resolution: 1mV

Readback Accuracy (23±5℃): 0.05%+0.05%F.S.

Interface: LAN/RS485

AC Input: Single phase, 220V AC±10%, frequency 47Hz~63Hz

Sampling Frequency: 25Hz

Communication Response Time: ≤10ms

Operating Environment: Altitude: <2000m, relative humidity: 5%~90%RH(non-condensing), atmospheric pressure: 80~110kPa

Temperature: Operating temperature: 0℃~40℃, storage temperature: -20℃~60℃

Net weight: Approx. 21kg

Dimension: 3U, 132.5(H)*482.0(W)with handle*495.0(D)mm
