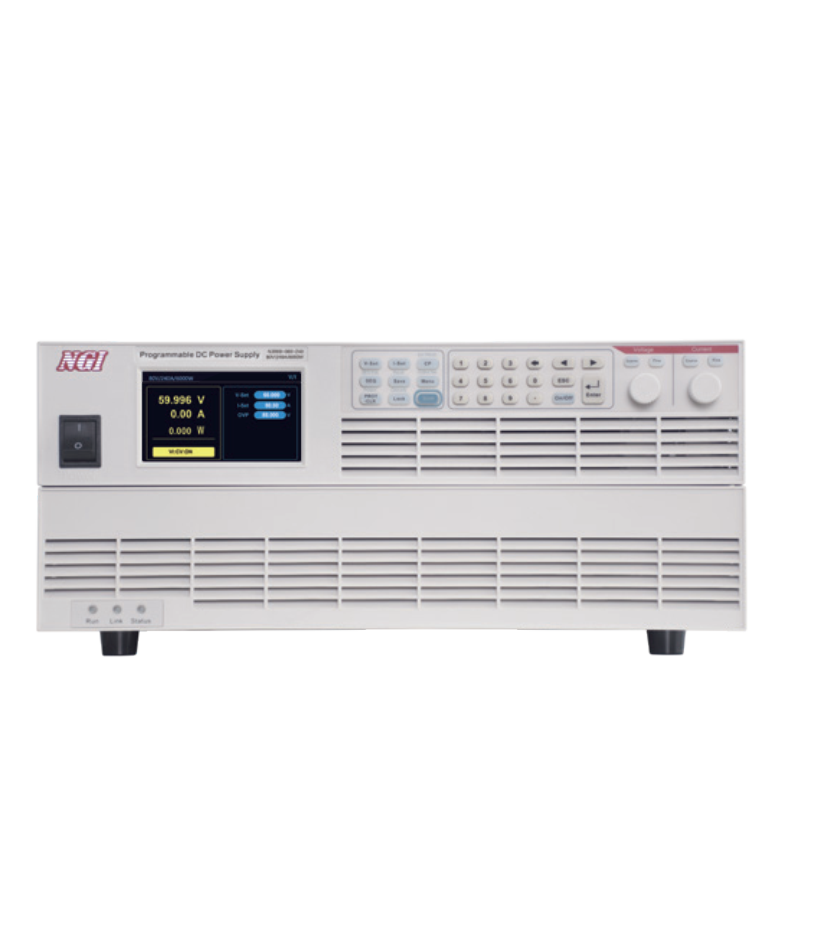

NGI N3660-240-120 Wide Range Programmable DC Power Supply (6000W/240V/120A)

Voltage range: 240V

Current range: 120A

Power range: 6000W

Multiple devices operation in cascade mode

CC, CV and CP mode

Sequence test function(SEQ), up to 100 groups sequence files, up to 100 steps per file

Editable rise/fall slew rate

Convenient HMI (human-machine interaction) interface on LCD screen

Equipped with LCD screen, numeric buttons and knob to support local operation

External dissipater to protect the power supply and DUT

Standard 19-inch chassis, available for benchtop or rack installation

Built-in RS232/LAN communication interface

Multiple protections: OCP, OVP, UVP, OTP, OPP, peripheral control communication error alarm

Analog programming (APG) interface, current monitoring interface, remote trigger function to realize complex function control and monitoring

Datasheet
