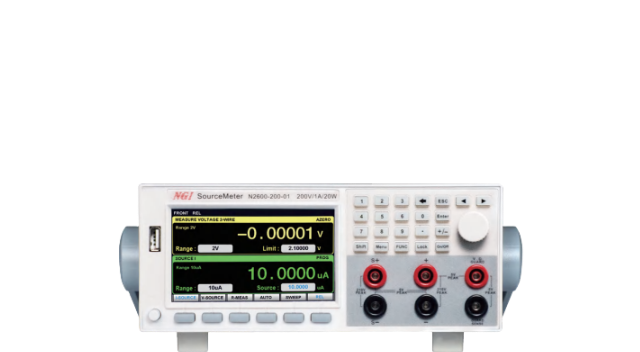

NGI N2600-200-01 High Precision Source Measure Unit (200V/1A/20W)

Specification: 200V/1A/20W

Display: LCD

Channel: 1CH

Digit: 6½

Quadrant: 4

Voltage

Range/ Setting/ Resolution/ Setting Accuracy (23±5℃)/ Measurement Resolution/ Measurement Accuracy(23±5℃)

200V/ 1mV/ 0.02%+20mV/ 1mV/ 0.02%+20mV

20V/ 100µV/ 0.02%+2mV/ 100µV/ 0.02%+2mV

2V/ 10µV/ 0.02%+200µV/ 10µV/ 0.02%+200µV

200mV/ 1µV/ 0.02%+100µV/ 1µV/ 0.02%+100µV

Voltage Ripple&Noise: ＜2mVrms（10Hz~20MHz）

Current

Range/ Setting Resolution/ Setting Accuracy (23±5℃)/ Measurement Resolution Measurement Accuracy(23±5℃)

1A/ 10µA/ 0.05%+500µA/ 10µA/ 0.05%+500µA

100mA/ 1µA/ 0.02%+20µA/ 1µA/ 0.02%+20µA

10mA/ 100nA/ 0.02%+2µA/ 100nA/ 0.02%+2µA

1mA/ 10nA/ 0.02%+200nA/ 10nA/ 0.02%+200nA

100µA/ 1nA/ 0.02%+20nA/ 1nA/ 0.02%+20nA

10µA/ 100pA/ 0.02%+2nA/ 100pA/ 0.02%+2nA

1µA/ 10pA/ 0.02%+600pA/ 10pA/ 0.02%+600pA

Resistance

Range/ Measurement/ Current Range/ Measurement Resolution/ Measurement Accuracy

2Ω/ 1A/ 10µΩ/ 0.2%+0.0003Ω

20Ω/ 100mA/ 100µΩ 0.05% + 0.003Ω

200Ω/ 10mA/ 1mΩ/ 0.05%+0.03Ω

2kΩ/ 1mA/ 10mΩ/ 0.05%+0.3Ω

20kΩ/ 100µA/ 100mΩ/ 0.05%+3Ω

200kΩ/ 10µA/ 1Ω/ 0.05%+30Ω

2MΩ/ 1µA/ 10Ω/ 0.1%+300Ω

20MΩ/ 1µA/ 100Ω/ 0.1%+2kΩ

200MΩ 100nA 1kΩ 0.7%+20kΩ

Storage

Programming Protocol: SCPI/Modbus

Communication Port: LAN/RS232

Input: Single phase, please refer to the voltage mark at the rear panel.

Temperature Operating temperature: 0℃-40℃, storage temperature: -20℃~60℃

Operating Environment: Altitude <2000m, relative humidity: 5%-90%RH(non-condensing), atmospheric pressure: 80-110kPa

Dimension: 88mm(H)*214mm(W)*366mm(D)

Net Weight: Approx.3kg
