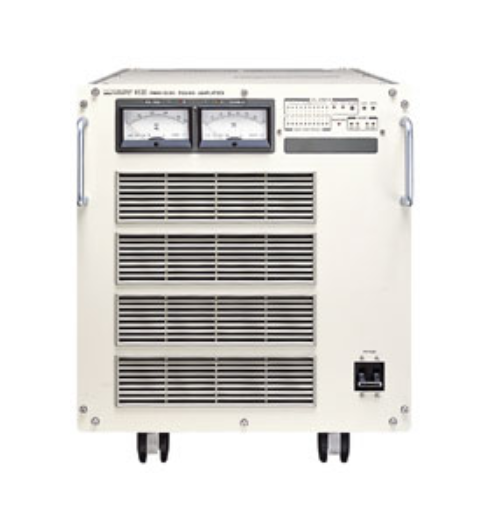

NF 4520A Precision Power Amplifier (2kVA, 16.7Arms)

Rated output power: 2kVA

Maximum output power with respect to products: 2.5kVA

Rated output current::

+ DC mode: ± 15.0A

+ AC mode(rms): 16.7Arms

Peak current: 2.5 X rated value (rms)

Rated output voltage: 120Vrms (± 170V) sinewave

Maximum output voltage: 141Vrms (± 200V) sinewave

Gain:

+ CV: 100V/V

+ CC: 12A/V

Gain stability: ± 100ppm (typ.), ± 100ppm/8h (typ.) (CV, DC to 1kHz)

Output mode: CV, CC, DC and AC

Load regulation (DC mode): CV mode : Within ± 0.1% (DC to 1kHz), ± 2% max. (1kHz to 20kHz); CC mode : Within ± 2% (DC to 1kHz), ± 20% max. (1kHz to 20kHz)

Line regulation (DC mode): CV mode : Within ± 0.1% (DC to 1kHz), ± 1% max. (1kHz to 20kHz)

Frequency response: +0.2, -0.5dB : DC to 5kHz (45Hz to 5kHz for AC mode), +0, -3dB : 5kHz to 20kHz

Harmonic distortion (DC mode): CV mode : 0.05% or less (10Hz to 1kHz), 1% or less (10kHz), 2.5% or less (20kHz); CC mode : 0.5% or less (10Hz to 1kHz), 2.5% or less (20kHz)

Output offset voltage/current: Adjustable to zero

Remote sensing: Possible in the CV and DC mode (DC to 1kHz)

Output type: Balanced , single-ended possibly, isolated between input and output

Power requirements: 1φ 200V ± 10% (220 or 240V is available as option.); 48Hz to 62Hz

Dimensions(mm): 430(W) X 442.5(H) X 600(D)

Weight: approx. 93kg
