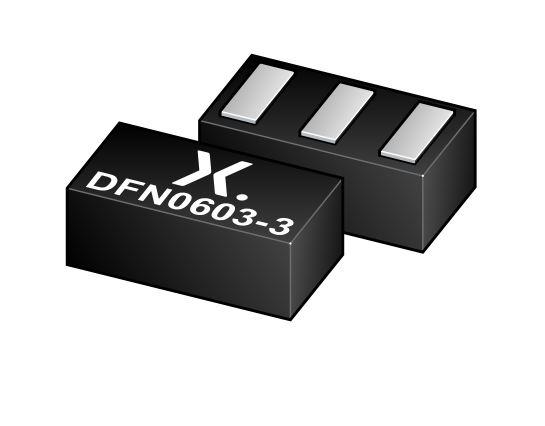

Nexperia PMX700ENZ MOSFETs new products in DFN0603

Fall Time: 4 ns

Rise Time: 1 ns

Technology: Si

Channel Mode: Enhancement

Mounting Style: SMD/SMT

Transistor Type: 1 N-Channel

Qg - Gate Charge: 700 pC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 500 mW

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Typical Turn-On Delay Time: 1 ns

Typical Turn-Off Delay Time: 7 ns

Id - Continuous Drain Current: 300 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 800 mOhms

Vds - Drain-Source Breakdown Voltage: 60 V

Vgs th - Gate-Source Threshold Voltage: 2.5 V
