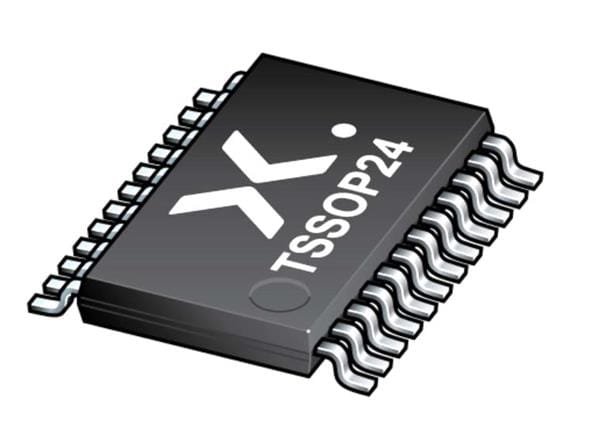

Nexperia PCA9539PWJ General Purpose Input/Output Expander Low-voltage 16-bit I²C-bus I/O port with interrupt and weak pull-up

Output Type: Open Drain, Push Pull

Logic Family: CMOS

ESD Protection: With ESD Protection

Interface Type: I2C, Serial

Mounting Style: SMD/SMT

Number of I/Os: 16 I/O

Interrupt Output: With Interrupt

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.3 V

Pd - Power Dissipation: 200 mW

Maximum Clock Frequency: 400 kHz

Operating Supply Current: 160 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
