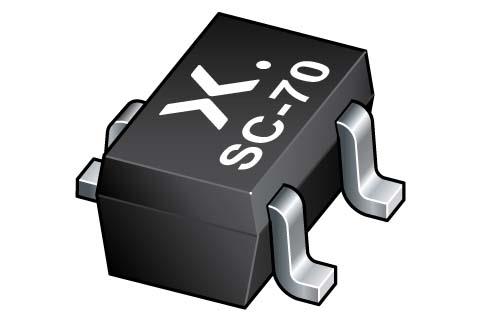

Nexperia BC807W-QX BJTs - Bipolar Transistors BC807W-Q/SOT323/SC-70

Technology: Si

Configuration: Single

Qualification: AEC-Q101

Mounting Style: SMD/SMT

Transistor Polarity: PNP

Pd - Power Dissipation: 290 mW

DC Current Gain hFE Max: 600 at - 100 mA, - 1 V

Gain Bandwidth Product fT: 80 MHz

Emitter- Base Voltage VEBO: 5 V

Collector- Base Voltage VCBO: 50 V

Continuous Collector Current: 500 mA

Maximum DC Collector Current: 1 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 65 C

DC Collector/Base Gain hfe Min: 100 at - 100 mA, - 1 V

Collector- Emitter Voltage VCEO Max: 45 V

Collector-Emitter Saturation Voltage: 700 mV
