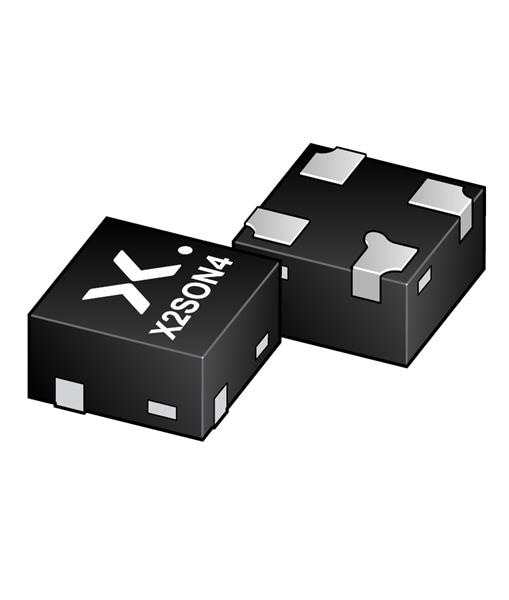

Nexperia 74LVC1G34GX4Z Buffers & Line Drivers Single buffer

Polarity: Non-Inverting

Logic Type: CMOS

Unit Weight: 0.370 mg

Logic Family: LVC

Mounting Style: SMD/SMT

Quiescent Current: 100 nA

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.65 V

Number of Input Lines: 1 Input

Number of Output Lines: 1 Output

Pd - Power Dissipation: 150 mW

Propagation Delay Time: 4.1 ns

Low Level Output Current: 32 mA

Operating Supply Current: 4 uA

High Level Output Current: - 32 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
