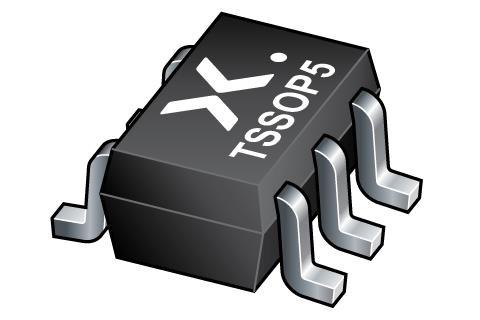

Nexperia 74LVC1G00GW,125 Single-Function Gates Single 2-input NAND gate

Width: 1.35 mm

Height: 1 mm

Length: 2.25 mm

Function: NAND

Logic Type: 2-Input NAND

Unit Weight: 6 mg

Logic Family: LVC

Logic Function: NAND

Mounting Style: SMD/SMT

Number of Gates: 1 Gate

Quiescent Current: 100 nA

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.65 V

Number of Input Lines: 2 Input

Number of Output Lines: 1 Output

Propagation Delay Time: 5.5 ns

Low Level Output Current: 32 mA

Operating Supply Voltage: 1.8 V, 2.5 V, 3.3 V, 5 V

High Level Output Current: - 32 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
