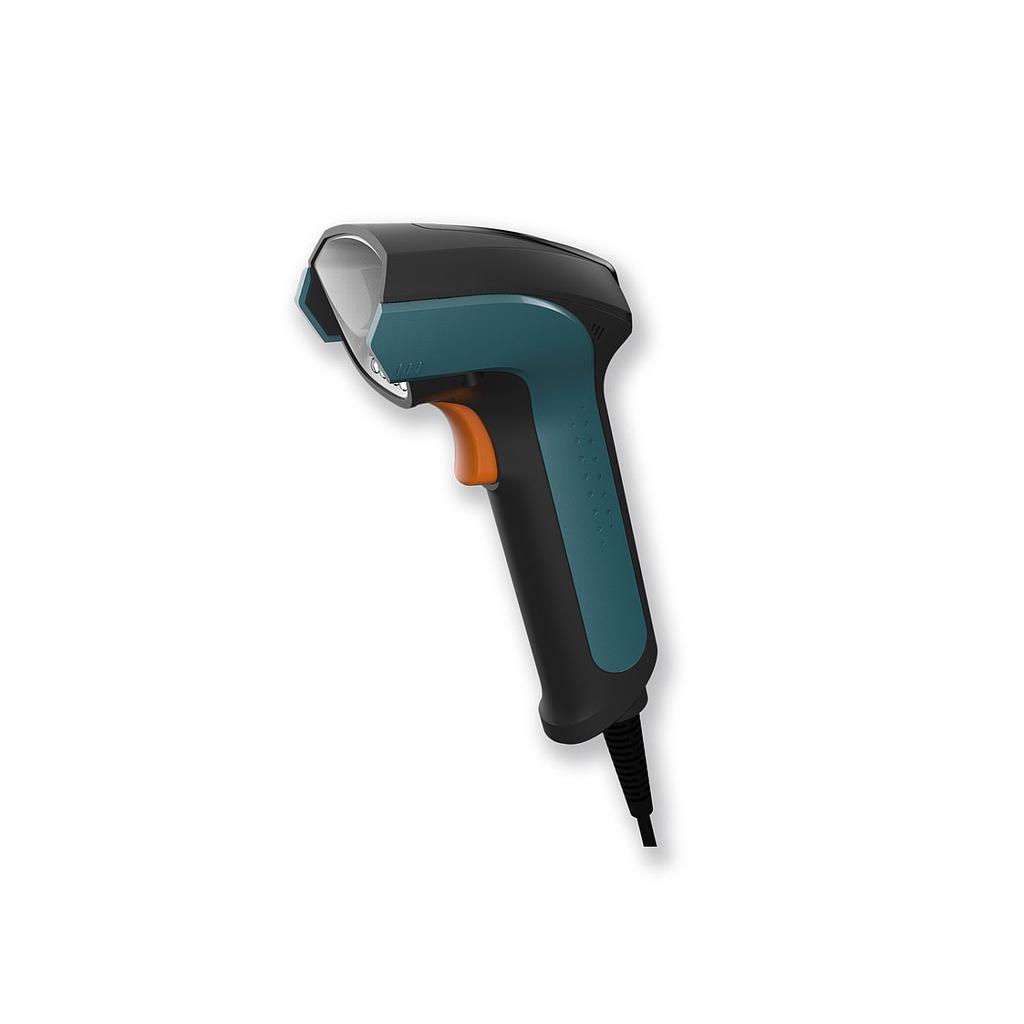

NEWLAND NVH220 Industrial handheld scanner (35mm-210mm)

Image Sensor: 1280 × 960 CMOS

Illumination

Direct: white & red light LED;

Diffuse: Ring of blue LEDs;

LED 532nm

Symbologies

2D: QR Code, PDF417, Micro QR, Data Matrix, AZTEC.1D:EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, Code11, COOP25,

GS1-128(UCC/EAN-128), ITF-6, ITF-14, AIM128, ISBT128, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, MSI Plessey, Code 39, Plessey, Deutsche 14, Deutsche 12.

Resolution: ≥3mil

Typical Depth of Field

EAN-13(13mil) : 25mm-160mm

Code 39(5mil) : 40mm-100mm

Code 39(20mil) : 35mm-210mm

Data Matrix(10mil) : 0mm-125mm

QR Code(20mil) : 20mm-180mm

Scan Angle

Roll: 360°, Pitch: ±50°, Skew: ±50°

Min. Symbol Contrast: 20%

Physical

Dimensions (L×W×H): 67(W)×86(D)×170(H) mm

Weight: 165g

Notification: Beep, LED indicator, Vibrator

Current

operating(typical) : 320mA

operating(max.) : 480mA

Interfaces: USB, RS232, PS/2

Environmental

Operating Temperature: -20°C to 50°C(-4°F to 122°F)

Storage Temperature: -40°C to 70°C(-40°F to 158°F)

Humidity: 5% to 95% (non-condensing)

ESD: ±16 KV (air discharge); ±8 KV (direct discharge)

Drop: 1.8m

Sealing: IP64

Certifications: FCC, CE, ROHS, IEC62471, BIS, KC
