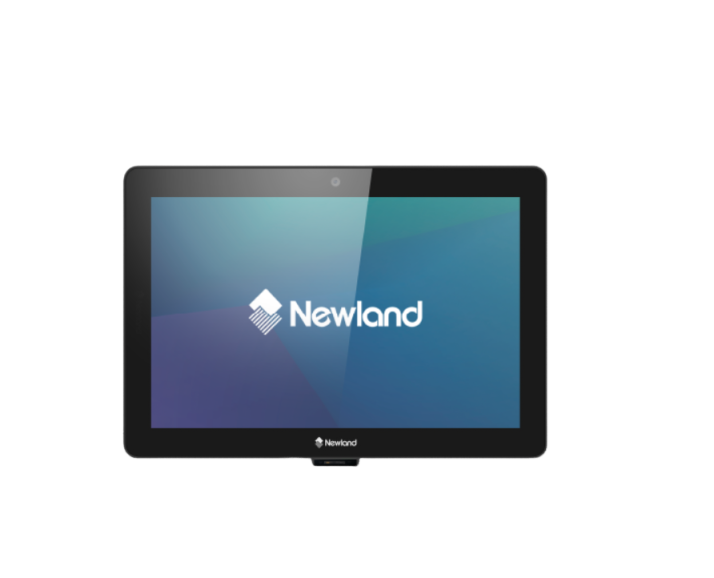

NEWLAND NQUIRE1000 Interactive Kiosk (70mm-610mm, 10.1'')

Processor: 2.0GHz, octa-core 64-bit processor

Operating System: Android 13（can be upgrade to higher version）

Memory 4GB RAM/64GB ROM

Symbologies

2D Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode.

1D Code128, Code 49, Code 16K, (GS1128) UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, Code39, ISSN, ISBN, CodaBar, Code93, Code 11, Plessey, MSI Plessey, RSS.

Depth of Field (Depend on Barcode and

Environment)

EAN-13 70mm-610mm(13mil)

Code39 110mm-290mm(5mil)

PDF417 110mm-230mm(6.7mil)

Data Matrix 110mm-260mm(10mil)

QR Code 55mm-410mm(15mil)

Screen Size: 10.1”

Interface: USB, Ethernet, Expansion

Network Connection: WLAN, WPAN , WWAN

Dimension: 251.7(L) × 173.5(W) × 32(H) mm

Decode Capability: 2D Barcode, 1D Barcode
