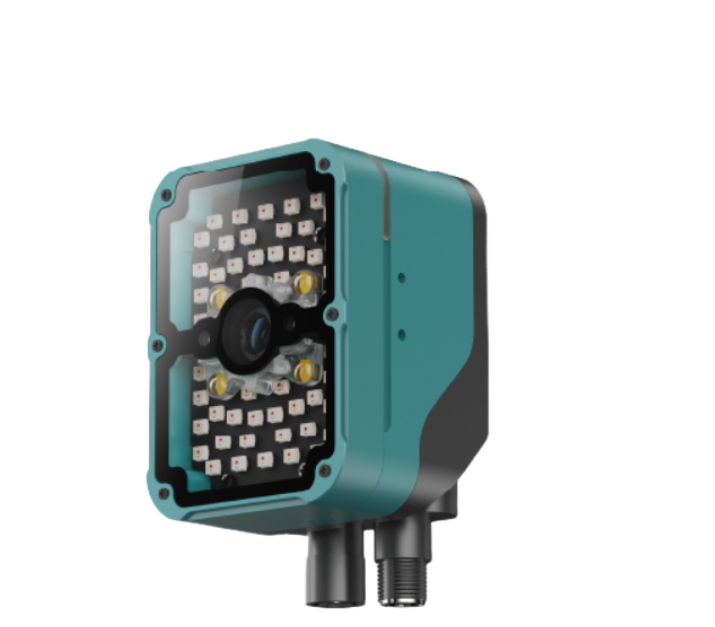

NEWLAND NLS-Soldier300S Industrial Fixed Mount Scanner (Long-distance type)

Type: Long-distance type

Sensor: CMOS Image Sensor

Number of pixels: 1920 × 1200 pixels

Illumination: 14 High-intensity red LED

For part lighting(Standard)

Effective focal length: 15mm

Aim: 2*circular laser

Reading specifications

Supported symbol:

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, Plessey, Deutsche14, Deutsche12

2D: QR Code, Data Matrix, PDF417, Aztec Code, Micro QR.

Minimum resolution

1D: 0.8mil

2D: 2mil

Reading distance: 100 to 2000mm

Motion Tolerance: 2m/s

Min. Symbol Contrast: ≥15%

Physical

Mechanical/ Electrical specifications

Dimensions: 61(W)×52.1(D)×100.9(H)

Weight: 394.7g

Prompt: Buzzer, pilot lamp

Power voltage: 24VDC

Current@ 24V DC:

Rated power: 7.9W

Standby current: 47mA

Input: Maximum load current: 15mA(Input:5 V~30V); 2 inputs

Output: Maximum load current 50mA(Input:≤30V); 2 outputs

Communication Interface: RS-232, RS485(optional), USB, TCP/IP, UDP, FTP, Modbus, Ethernet/IP, Profinet
