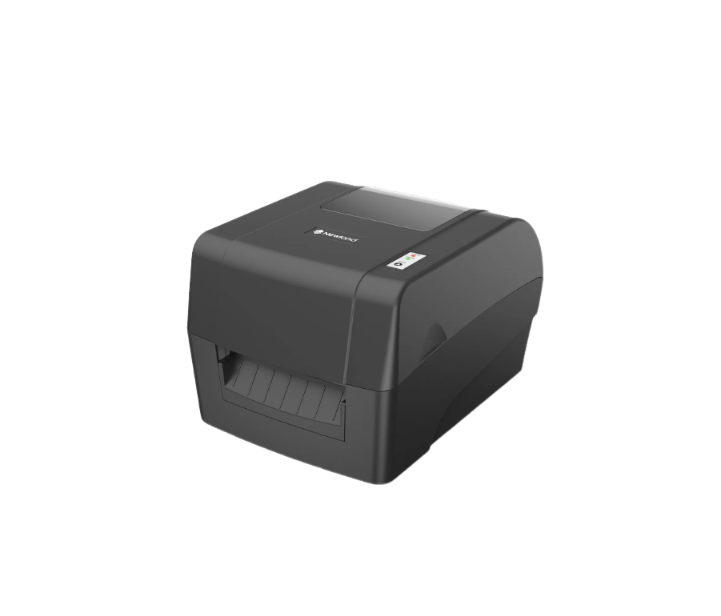

NEWLAND LP410 Label Printer (203dpi /300dpi)

Resolution: 203dpi (8dots/mm)/ 300dpi (12dots/mm)

Printing: Direct Thermal/ Thermal Transfer

Max. Print Width: 108mm/105mm

Max. Print Speed: 152mm/s/100mm/s

CPU: 32bit RISC MPU

Programming Language: BPLE, BPLZ, BPLT

Memory: FLASH: 8MB; SDRAM: 32MB

Interface: USB, serial port, Ethernet port

Ribbon & Media

Media Type: Continuous paper, label paper, marking paper etc.

Media Roll Size

Max. outer diameter: 127mm

Max. width: 110mm

Inner diameter: 25mm/38mm

Media Thickness: 0.06mm~0.20mm

Ribbon core Inside Diameter: 12.5mm/25.4mm

Ribbon Outside Diameter: Max. 65mm

Ribbon Standard Length: Max: 300m

Paper Cutting: Tear off

Fonts/Graphics/Symbology

Symbologies

1D: Code39, Code93, codabar, Code128(Subsets A, B, and C), EAN-13, EAN-8, UPC-A, UPC-E, UPC/EAN Extensions, Planet Code, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, GS1 DataBar(RSS)

2D: PDF 417, MicroPDF417, QR Code, DataMatrix, MaxiCode, GS1 Composite

Fonts: Built-in 7 dot matrix fonts and 1 vector font, support users to download dot matrix fonts and vector fonts

Graphic magnification/rotation

Dot matrix fonts support up to 10 times magnification

Vector fonts support infinite scaling

Graphics: Binary unformatted bitmap, HEX, PCX, BMP and IMG image files can be downloaded to FLASH, RAM
