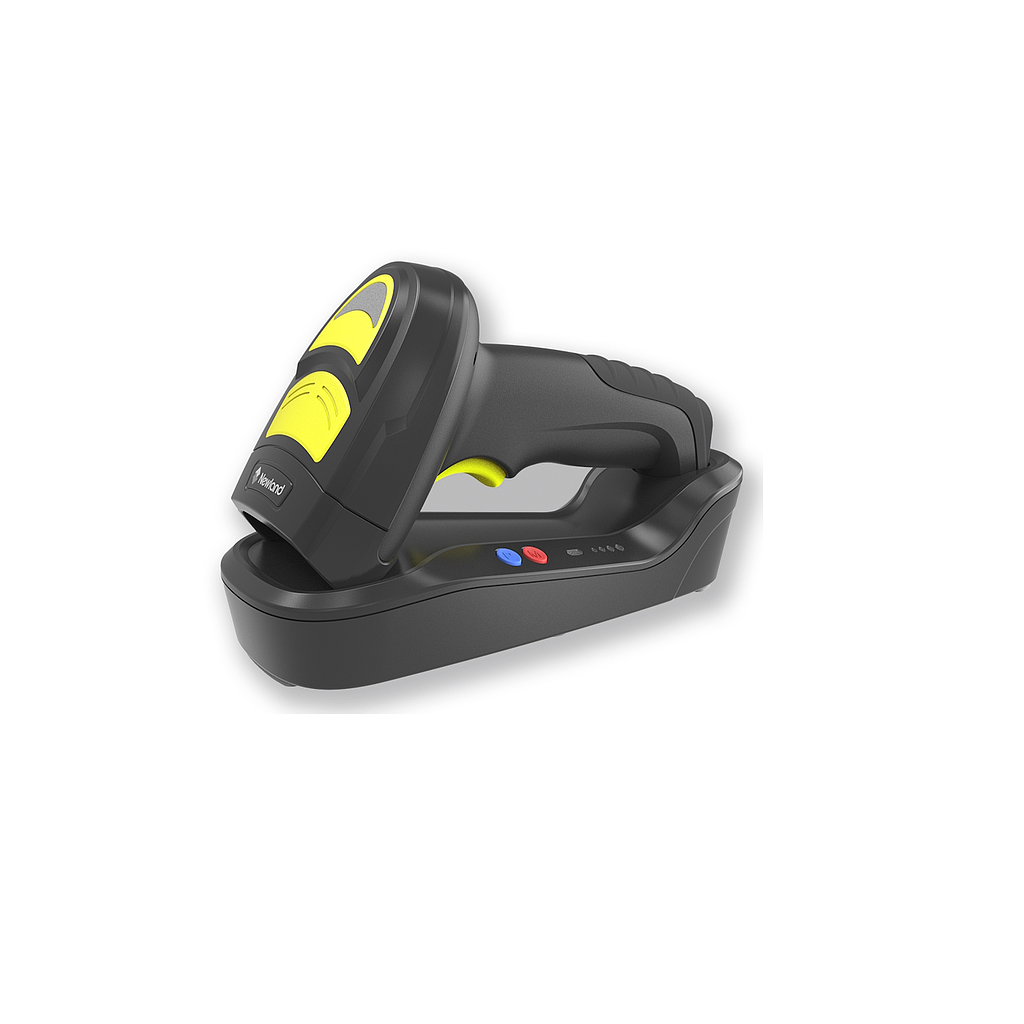

NEWLAND HR42-BT Industrial Handheld Scanner (35mm-210mm)

Image Sensor: 1280 × 960 CMOS

Illumination: White LED

Symbologies

2D: QR Code, Micro QR Code, PDF 417, Data Matrix.

1D: EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleave 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12.

Resolution: ≥3mil

Typical Depth of Field

EAN-13(13mil): 25mm-160mm

Code 39(5mil): 40mm-100mm

Code 39(20mil): 35mm-210mm

Data Matrix(10mil): 0mm-125mm

QR Code(20mil): 20mm-180mm

Scan Angle

Pitch: ±50°, Roll: 360°, Skew: ±50°

Field of View: horizontal 41°, Vertical 31°

Min Symbol Contrast: 25%

Aiming: 650nm laser diode

Physical

Dimensions (L×W×H)

Scanner: 74.0×115.0×161.0mm

Cradle: 195×82.5×47.2mm

Weight

Scanner: 230g

Cradle: 146g

Notification: Beep, LED, vibration

Interfaces: USB, RS232, PS/2

Operating Voltage: 4VDC±5%

Rated Power Consumption: 2160mW (typical)

Current@4VDC

Operating: 500mA

Idle: 45mA

Sleep: 19mA

Communication Distance: 30m (line of sight)

Battery: 3200mAh

Expected Battery Life: 26 hours of continuous operation, up to 44,000 scans per charge

Expected Charge Time: 4 hours

Flash Memory: 900KB

Environmental

Operating Temperature: -20°C to 50°C (-4°F to 122°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Humidity: 5% to 95% (non-condensing)

ESD

±16 KV (air discharge); ±8 KV (direct discharge)

Drop: 1.8m

Sealing: IP42

Ambient Light: 0~100,000lux (natural light)
