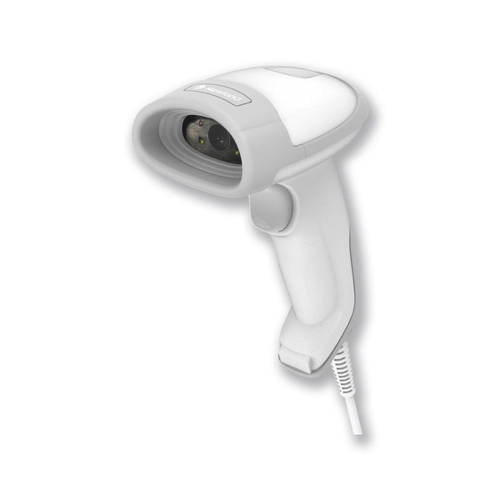

NEWLAND HR3280-HC Handheld 2D Barcode Scanner (CMOS 1280×800; ≥3mil)

Image Sensor: 1280×800 (MP) CMOS

Light Source: Red LED/White LED

Barcodes: 1D; 2D; Postal; OCR

Resolution: ≥3mil

Depth of Field: EAN-13: 55mm-570mm (13mil). Code 39: 115mm-170mm (5mil). PDF 417: 85mm-225mm (6.7mil). Data Matrix: 65mm-305mm (10mil). QR Code: 25mm-395mm (15mil)

Scan Angle: Pitch: ±55°, Roll: 360°, Skew: ±55°

Field of View: Horizontal 39°, Vertical 24°

Minimum Symbol Contrast: 25%

Aiming Light: Blue LED

Connectivity: RS-232, USB

Operating Voltage: 5VDC±5%

Rated Power Consumption: 1289.6mW (typical)

Current@5VDC: Operating: 241.2mA (typical), 260.5mA (max). Standby: 71.3mA

Dimensions (L×W×H): 159.0×113.5×73.3mm

Weight: 162g

Notification: Beeper, LED

Operating Temperature: -20°C to 60°C

Storage Temperature: -40°C to 70°C

Humidity: 5%~95% (non-condensing)

ESD: ±15 KV (air discharge); ±8 KV (contact discharge)

Drop Resistance: 1.5m drop to concrete

Protection Standard: IP42
