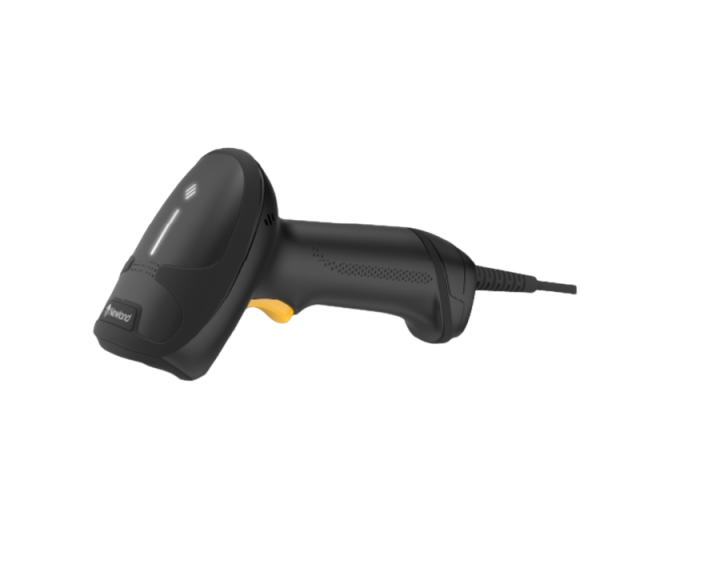

NEWLAND HR3000 Corded Handheld Scanner (35mm-580mm)

Image Sensor: 1280×800 (megapixel) CMOS

Illumination: White LED

Aiming: Laser

Symbologies

1D:Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS), Code 49, Code 16K

2D:PDF417, QR Code, Micro QR, Data Matrix, Aztec, Maxi Code, Chinese Sensible Code, GM Code, Micro PDF417, Code One.

OCR:Passport OCR, Chinese ID Card, China Travel Permit OCR

Postal:USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal

Resolution: ≥3mil

Typical Depth of Field

EAN-13:35mm-580mm (13mil)

Code 39:50mm-250mm (5mil)

PDF 417:40mm-215mm (6.7mil)

Data Matrix:30mm-260mm (10mil)

Scan Angle

Pitch: ±60°, Skew: ±60°, Roll: 360°

Field of View: Horizontal 48°, Vertical 30°

Min Symbol Contrast: 15%

Physical

Interface: RS-232, USB

Operating Voltage: 5VDC±5%

Rated Power Consumption: 1351mW (typical)

Current@5VDC

Operating:271.28mA (typical), 281.39mA (max.)

Idle:129.58mA

Dimensions (L×W×H): 117.5×67.5×144mm

Weight: 140g

Notification: Beep, LED, Vibration

Environmental

Operating Temperature: -20°C to 60°C (-4°F to 140°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Humidity: 5%~95% (non-condensing)

ESD: ±15 KV (air discharge); ±8 KV (contact discharge)

Drop: 1.5m

Sealing: IP52

Certificates

Certificates & Protection: CE, FCC, RoHS 2.0, IEC62471, IEC60825
