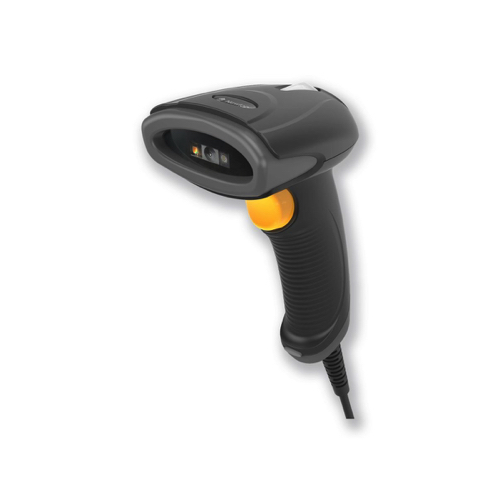

NEWLAND HR2081 Handheld 2D Barcode Scanner (640×480 CMOS; ≥3mil)

Image Sensor: 640×480 CMOS

Light Source: White LED

Barcode Reading: 1D; 2D

Resolution: ≥3mil

Depth of Field: EAN-13: 50mm-260mm (13mil), Code 39: 50mm-115mm (5mil), PDF 417: 50mm-120mm (6.7mil). Data Matrix: 35mm-125mm (10mil). QR Code: 30mm-170mm (15mil).

Scan Angle: Pitch: ±55°; Skew: ±55°; Roll: 360°

Field of View: Horizontal 45°, Vertical 34°

Minimum Symbol Contrast: 20%

Aiming: Red LED (625nm)

Connectivity: RS-232, USB

Operating Voltage: 5VDC±5%

Rated Power Consumption: 950mW (typical)

Current@5VDC: Operating: 190mA (typical), 201mA (max); Standby: 35mA

Dimensions: 145×101×68mm

Weight: 111g

Notification: Beeper, LED

Operating Temperature: -20°C to 60°C

Storage Temperature: -40°C to 70°C

Humidity: 5%~95% (non-condensing)

ESD: ±15 KV (air discharge); ±8 KV (direct discharge)

Drop Resistance: 1.2m

Protection Standard: IP42

Datasheet
