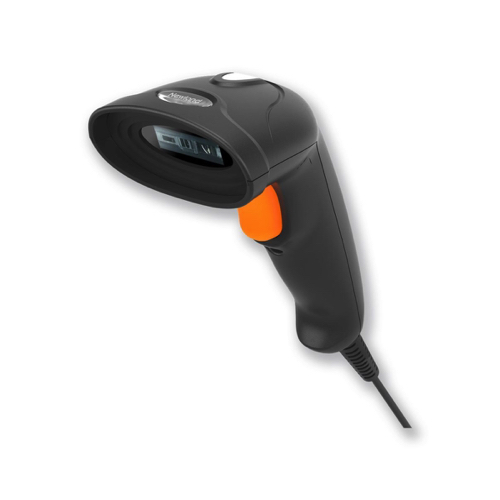

NEWLAND HR1250 Handheld Scanner (≥4mil)

Image Sensor: Linear Imager

Light Source: Red LED (610nm~640nm)

Barcode Reading:

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.

Resolution: ≥4mil

Depth of Field: EAN-13: 50mm-655mm (13mil), Code 39: 55mm-165mm (5mil), Code 128: 40mm-495mm (10mil).

Scan Angle: Pitch: ±60°; Roll: ±30°; Skew: ±60°

Minimum Symbol Contrast: 30%

Connectivity: USB

Operating Voltage: DC5V

Rated Power Consumption: 352mW (typical)

Current: Operating mode: 55mA±5mA, Standby mode: 21mA±2mA, Max mode <120mA

Dimensions (L×W×H): 163.0×68.4×58.5mm

Weight: 130g (including USB cable)

Notification: Beeper, LED

Operating Temperature: -20°C to 60°C (-4°F to 140°F)

Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Humidity: 5%~95% (non-condensing)

ESD: ±8 KV (contact discharge); ±10 KV (air discharge)

Datasheet
