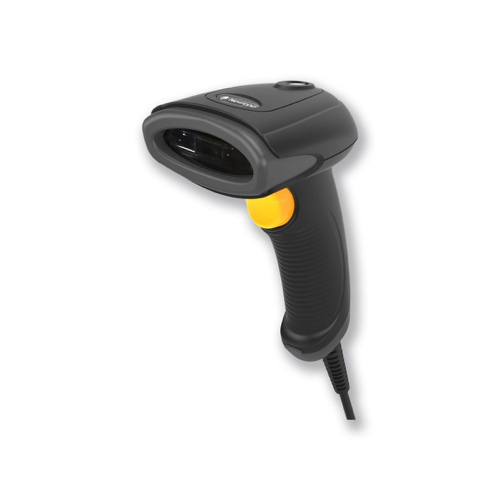

NEWLAND HR11 Plus Handheld Scanner (≥3mil)

Image Sensor: 2500-pixel linear imager

Illumination: Red LED (620nm~630nm)

Symbologies: 1D AIM 128, Code 11, Code32, Code 39, Code 93, Code 128, Codabar, COOP 25, Deutsche 12,

Deutsche: 14, EAN-8, EAN-13, Febraban, GS1-128, GS1 Databar (RSS), ISBN, ISSN, ITF-6, ITF-14,

MSI-Plessey, Plessey, UPC-A, UPC-E, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5.

Resolution: ≥3mil

Scan Angle:Pitch: ±60°, Roll: 360°, Skew: ±70°

Field of View: Horizontal: 53°±2°

Interface: RS-232, USB

Dimensions: 101(L)×68(W)×145(H)mm

Weight: 120g

Drop: 1.5m drops to concrete

Sealing: IP42
