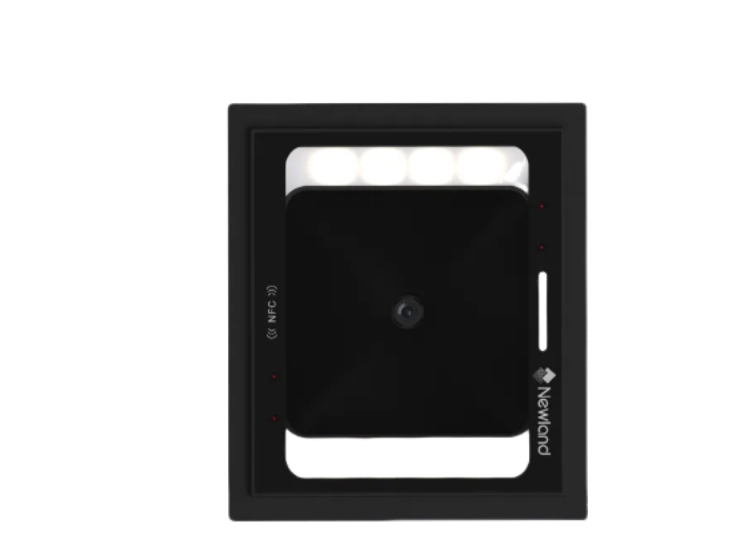

NEWLAND FM3280 Fixed Mount Scanner (0-290mm)

Decode Capability: 1D, 2D, Postal, OCR

Interface: RS-232, USB, RS-485, Wiegand

Illumination: White LED

Dimension: 78.7 x 47.7 x 67.7mm

Weight: 132g

Image Sensor: 1280 * 1088 CMOS

Illumination: 3000K white LED

Symbologies

2D: PDF417, Data Matrix, QR Code, Micro QR, Aztec, etc

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI Plessey, Code 39 (Code 39 FULL ASCII), Plessey, etc

Postal: USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal, Japan Post

OCR: Passport OCR, Chinese ID Card, China Travel Permit OCR

Resolution: ≥3mil (1D)

Typical Depth of Field

EAN-13 (13mil): 0-290mm

Code 39 (20mil): 15-310mm

Code 128(10mil): 0-280mm

QR Code (20mil): 0-270mm

Min. Symbol Contrast: 25%

Field of View: Vertical 66°, Horizontal 58.2°

Scan Window: 45mm×45mm

Scan Modes: Sense mode, Continuous mode, Command mode

Scan Angle

Roll: 360°, Pitch: ±60°, Skew: ±60°
