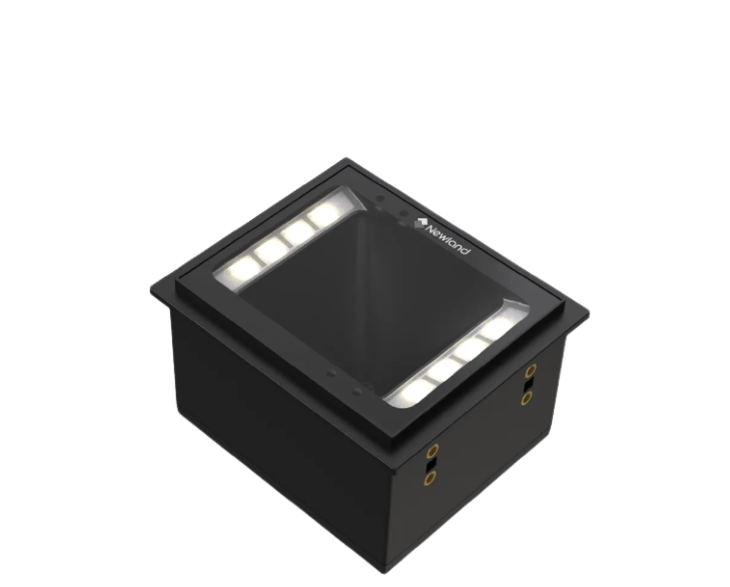

NEWLAND FM3270 Fixed Mount Scanner (0-170mm)

Decode Capability: 1D, 2D

Interface; RS-232, USB

Illumination: White LED

Dimension: 78.7 x 47.7 x 67.7mm

Weight: 132g

Image Sensor: 640*480 CMOS

Illumination: 3000K white LED

Symbologies

2D: PDF417, Data Matrix, QR Code, Micro QR, Aztec, etc

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI-Plessey, Code 39 (Code 39 FULL ASCII), Plessey, etc

Resolution: ≥4mil (1D)

Typical Depth of Field

EAN-13 (13mil): 0-170mm

Code 39 (20mil): 15-200mm

Code 128 (10mil): 0-160mm

QR Code (20mil): 0-95mm

Min. Symbol Contrast: 25%

Field of View: Vertical 70°，Horizontal 55°

Scan Window: 45mm×45mm

Scan Modes: Sense mode, Continuous mode, Command mode

Scan Angle: Roll: 360°, Pitch: ±50°, Skew: ±50°
