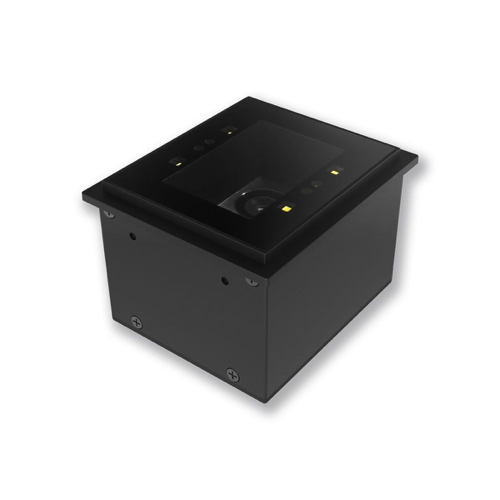

NEWLAND FM3056 Fixed Mount Barcode Scanner (752*480 CMOS; ≥5mil)

Image Sensor: 752 × 480 CMOS

Illumination: White LED

Decoding Capability:

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39 (Code 39 FULL ASCII), Code 11, MSI-Plessey, Plessey, GS1-128 (UCC/EAN-128), AIM 128.

2D: PDF417, Data Matrix, QR Code, Aztec, Micro QR.

Resolution: ≥5 mil

Scan Mode: Sense Mode, Continuous Mode

Light Source: LED (622 nm – 628 nm)

Minimum Print Contrast: 25%

Scan Window: 31.5 mm × 46.5 mm

Field of View: Horizontal 75°, Vertical 50°

Scan Angle: Roll: 360°; Pitch: ±40°; Skew: ±40°

Dimensions: 78.7 (W) × 67.7 (D) × 53 (H) mm (maximum)

Weight: 168 g

Indicators: Beeper

Power Consumption: 572 mW (typical)

Operating Voltage: 5 VDC ±5%

Current @5VDC: Operating: 115 mA (typical), 198 mA (maximum)

Interface: RS-232, USB

Operating Temperature: -20°C to 60°C (-4°F to 140°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Humidity: 5% – 95% (non-condensing)

ESD Protection: ±8 kV (air discharge); ±4 kV (direct discharge)
