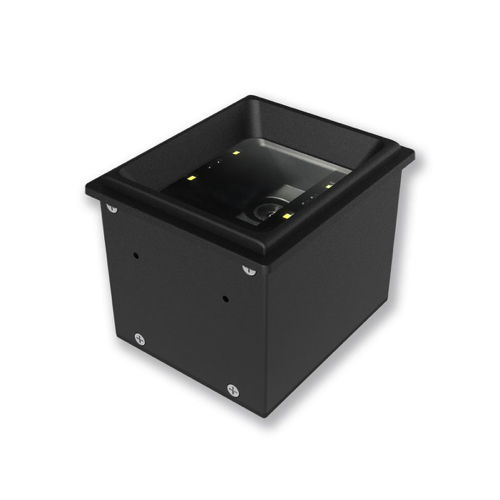

NEWLAND FM3051 Fixed Mount Barcode Scanner (752*480 CMOS; ≥5mil)

Image Sensor: 752 × 480 CMOS

Illumination: White LED

Decoding Capability: 1D, 2D (QR Code)

Resolution: ≥ 5 mil

Scanning Modes: Sense Mode, Continuous Mode

Light Source: LED (622 nm – 628 nm)

Minimum Print Contrast: 25%

Scan Window: 38.3 mm × 60.4 mm

Field of View: Horizontal 75°, Vertical 50°

Scan Angle: Roll 360°; Pitch ±40°; Skew ±40°

Dimensions (W × D × H): 78.7 × 67.7 × 62.5 mm (maximum)

Weight: 184 g

Indication: Beep sound

Power Consumption: 572 mW (typical)

Operating Voltage: 5VDC ±5%

Current: Operating: 115 mA (typical); Maximum: 198 mA

Interface: RS-232, USB

Operating Temperature: -20°C to 60°C (-4°F to 140°F)

Storage Temperature: -40°C to 70°C (-4°F to 158°F)

Humidity: 5% – 95% (non-condensing)

ESD Protection: ±8 kV (air discharge); ±4 kV (direct discharge)

Datasheet
