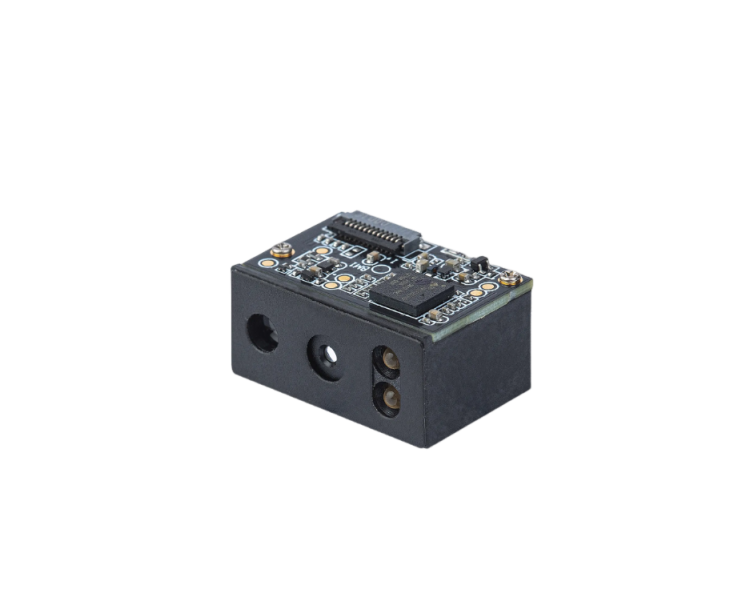

NEWLAND EM3296 Scan Engine (50mm-365mm)

Image Sensor: 640 * 480 CMOS

Illumination: Red LED 625±10 nm

Symbologies

2D: PDF417, QR Code, Micro QR, Data Matrix, Aztec

1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, AIM 128, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey

Resolution: ≥4mil

Typical Depth of Field

EAN-13: 50mm-365mm (13mil)

Code 39: 40mm-165mm (5mil)

Data Matrix: 35mm-115mm (10mil)

QR Code: 35mm-145mm (15mil)

PDF 417: 45mm-115mm (6.67mil)

Scan Angle

Roll: 360°, Pitch: ±50°, Skew: ±60°

Min. Symbol Contrast: 25%

Aiming: Red LED 625±10 nm

Field of View

Horizontal 44°, Vertical 33.2°

Decode Capability: 1D, 2D

Form Factor: All-in-One

Interface: USB, TTL-232

Illumination: Red LED

Dimension: 21.8×15.3×11.8mm

Weight: 4g

Datasheet
