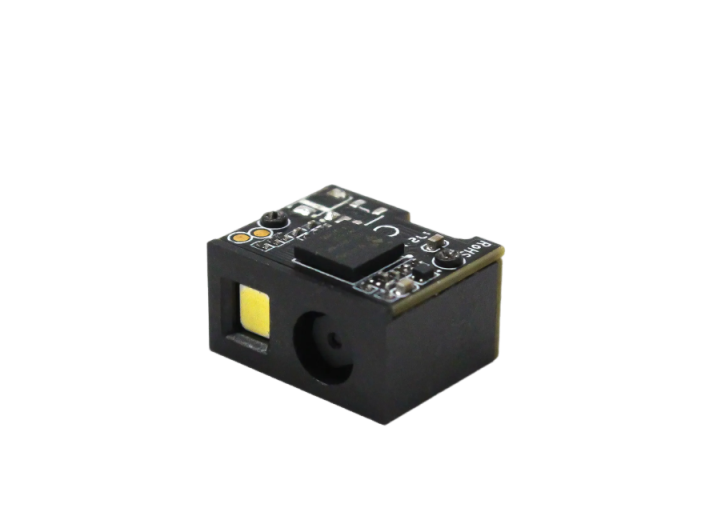

NEWLAND EM3088-W Scan Engine (30mm-85mm)

Decode Capability: 1D, 2D, Postal, OCR

Interface: USB, TTL-232

Illumination: White LED

Dimension: 21.7 x 14.5 x 12mm

Weight: 3g

Image Sensor: 1280*800 CMOS

Illumination: White LED

Symbologies

2D: PDF 417, Micro PDF417, QR, Micro QR, Data Matrix, Chinese Sensible Code, GridMatrix, Code One, Aztec

1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2/5, ITF-14, ITF-6, ISBN, ISSN, Code 93, Code 11, GS1 Databar, GS1 Composite, Matrix 2/5, COOP 25, Industrial 2/5, Standard 2/5, MSI Plessey, Plessey, Code 49, Code 16K, GS1 128, AIM 128, ISBT 128

Postal: USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal, Japan Post

OCR: Passport OCR, Chinese ID Card OCR, China Travel Permit OCR

Resolution: ≥3mil(Code 39)

Typical Depth of Field

EAN-13: 30mm-85mm (13mil)

PDF417: 30mm-55mm (6.7mil)

Code 39: 35mm-65mm (5mil 50mm)

Data Matrix: 23mm-65mm (10mil)

QR Code: 20mm-80mm (15mil)

Min. Symbol Contrast: 25%

Scan Angle

Roll: 360°, Pitch: ±50°, Skew: ±50°

Field of View: Horizontal 99°, Vertical 72.4°, Diagonal 109°
