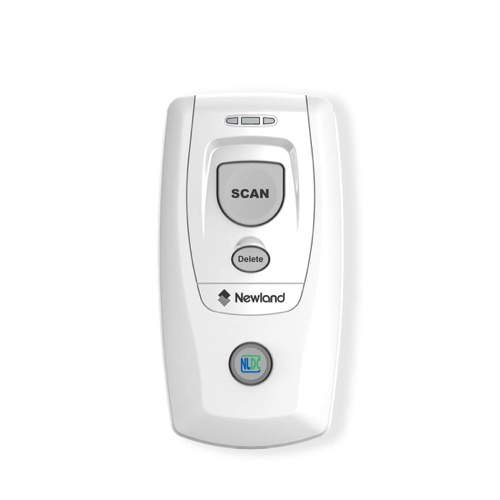

NEWLAND BS80-HC Pocket Bluetooth Barcode Scanner (752×480 CMOS; ≥5mil)

Image Sensor: 752×480 CMOS

Barcodes:

1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, AIM-128, ITF-14, ITF-6, Matrix 2 of 5, Industrial 2 of 5, Standard 25, Code 11, Plessey, MSI-Plessey.

2D: PDF417, QR Code, Data Matrix, Chinese Sensible Code.

Resolution: ≥5mil

Depth of Field: EAN-13: 65mm-295mm (13mil). Code 39: 55mm-165mm (5mil). PDF 417: 65mm-135mm (6.7mil). Data Matrix: 65mm-140mm (10mil). QR Code: 45mm-175mm (15mil)

Scan Angle: Pitch: ±50°, Roll: 360°, Skew: ±50°

Minimum Symbol Contrast: 30%

Memory: 1MB (capable of storing the data of over 20,000 EAN-13 barcodes)

Communication Range: 50m/164 ft. (open space)

Wireless Standard: 2.4 - 2.5GHz ISM Band, compatible with Bluetooth 4.0/3.0/2.1+EDR

Connectivity: Micro USB, Bluetooth HID/SPP/BLE Profiles

Current: Operating Standby: 125mA (Bluetooth on) 12mA

Dimensions (L×W×H): 88.0(L)×46.0(W)×24.5(H)mm

Weight: 62g

Notification: Beeper, LED and Vibration

Battery: 3.7V 900mAh rechargeable Li-ion battery

Battery Life: 6 hours continuous operation (Synchronous mode, scan and send data once every 6 seconds)

Battery Charge Time: 3.5 hours

Operating Temperature: -20°C to 50°C (-4°F to 122°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Humidity: 5%~95% (non-condensing)

ESD: ±8 KV (contact discharge); ±15 KV (air discharge)

Drop Resistance: 1.2m

Protection Standard: IP42

Datasheet
