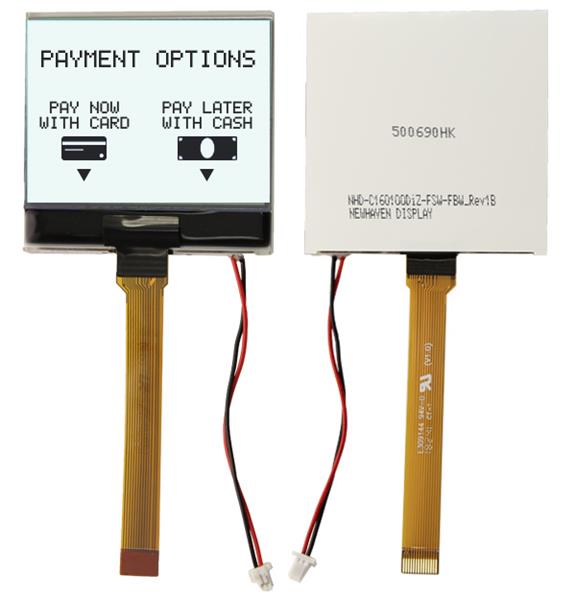

Newhaven Display NHD-C160100DiZ-FSW-FBW Graphic LCD Modules FSTN (+) 49.2 X 47.6

Style: COG LCD Module

Features: Built-in ST7528i (I2C) Controller

Fluid Type: FSTN Positive

Resolution: 160 x 100

Touch Panel: Without Touch Panel

Unit Weight: 14 g

Backlighting: Side LED White

Display Mode: Transflective

Response Time: 200 ms, 300 ms

Interface Type: I2C

Background Color: No Background Color

Viewing Area - W x H: 46.2 mm x 33.89 mm

Module Size - W x H x T: 49.2 mm x 47.6 mm x 4 mm

Operating Supply Voltage: 3 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
