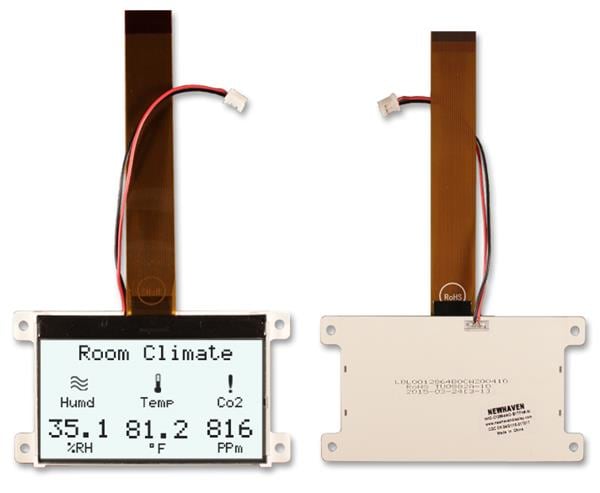

Newhaven Display NHD-C12864WO-B1TFH#-M COG LCD Graphic Display COG FSTN(+) 128x64 128 x 64 Pixels

Style: Chip-On-Glass (COG)

Features: COG LCD Module with Built-in Controller ST7565P-G

Fluid Type: FSTN Positive

Resolution: 128 x 64

Touch Panel: Without Touch Panel

Unit Weight: 32 g

Backlighting: LED, White

Display Mode: Transflective

Response Time: 180 ms

Interface Type: Parallel, Serial

Mounting Style: Panel

Viewing Area - W x H: 69 mm x 36.5 mm

Module Size - W x H x T: 89.7 mm x 49.8 mm x 6 mm

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
