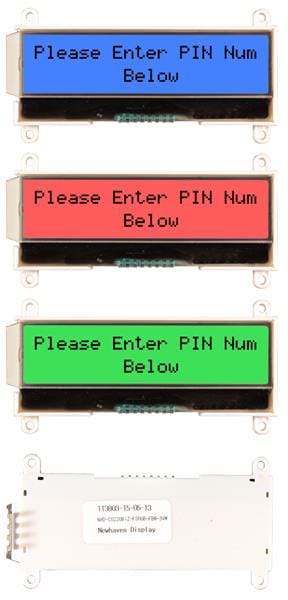

Newhaven Display NHD-C0220BiZ-FS(RGB)-FBW-3VM Character LCD Module 2 x 20 FSTN (+) Transf RGB LED

Features: Chip-on-Glass LCD module with built-in controller ST7036i

Fluid Type: FSTN Positive

Touch Panel: Without Touch Panel

Unit Weight: 18 g

Display Mode: Transflective

Backlight Type: Side LED RGB

Interface Type: I2C

Background Color: Red, Green, Blue

Viewing Area - W x H: 61 mm x 15.1 mm

Character Count x Line: 20 x 2

Character Size - H x W: 5.55 mm x 2.45 mm

Module Size - W x H x T: 71.6 mm x 27.1 mm x 6.8 mm

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
