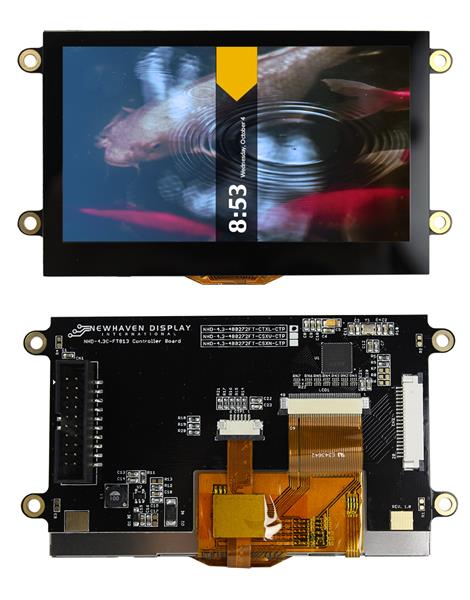

Newhaven Display NHD-4.3-480272FT-CTXL-CTP TFT LCD Displays 4.3 EVE2 TFT STANDARD CAP

Diagonal: 4.3 in

Resolution: WQVGA

Touch Panel: Capacitive Touch Panel

Unit Weight: 123.145 g

Backlighting: LED, White

Display Mode: Transmissive

Interface Type: SPI

Background Color: Normally White

Viewing Area - W x H: 95.44 mm x 54.2 mm

Module Size - W x H x T: 105.5 mm x 67.2 mm x 4.53 mm

Operating Supply Current: 40 mA

Operating Supply Voltage: 3.3 V

Display Resolution - Pixels: 480 x 272

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
