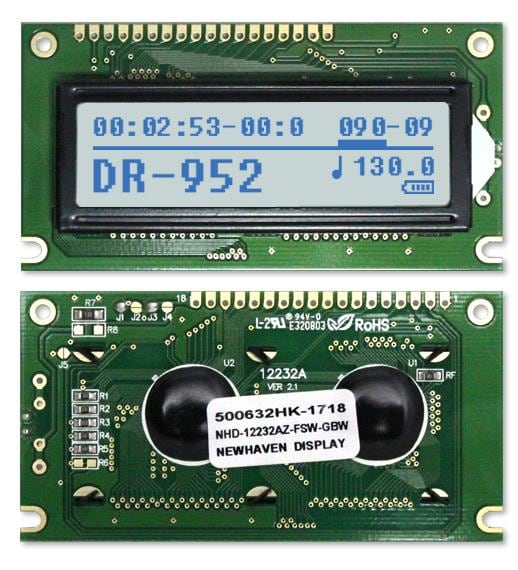

Newhaven Display NHD-12232AZ-FSW-GBW Graphic LCD Modules STN-Gray 84.0 x 44.0

Style: LCD Graphic Display

Features: Built-in SBN1661G M02 Controller

Fluid Type: STN Positive

Resolution: 122 x 32

Touch Panel: Without Touch Panel

Unit Weight: 40 g

Backlighting: Side LED White

Display Mode: Transflective

Response Time: 100 ms, 150 ms

Interface Type: Parallel

Background Color: Gray

Viewing Area - W x H: 64 mm x 17.9 mm

Module Size - W x H x T: 84 mm x 44 mm x 10 mm

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
