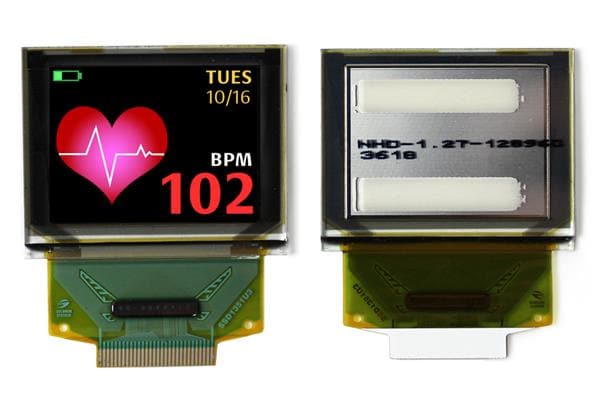

Newhaven Display NHD-1.27-12896G OLED Displays 1.27 IN Full Color OLED Glass

Brightness: 100 cd/m2

Resolution: 128 x 96

Unit Weight: 27.443 g

Viewing Angle: 80 deg

Interface Type: Parallel, SPI

Illumination Color: RGB

Viewing Area - W x H: 19.28 mm x 25.708 mm

Module Size - W x H x T: 26.9 mm x 33.7 mm x 1.6 mm

Operating Supply Current: 27 mA

Operating Supply Voltage: 2.5 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
