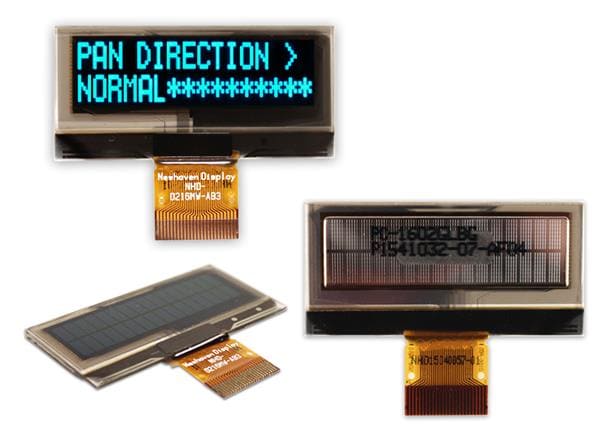

Newhaven Display NHD-0216MW-AB3 OLED Displays 2x16 OLED Glass Character Blue

Brightness: 80 cd/m2

Touch Panel: Without Touch Panel

Unit Weight: 12.049 g

Display Type: 16x2 Character Display

Viewing Angle: 80 deg

Interface Type: I2C, Parallel, Serial

Illumination Color: Blue

Viewing Area - W x H: 36.22 mm x 11.4 mm

Character Count x Line: 16 x 2

Module Size - W x H x T: 41.4 mm x 19.9 mm x 1.6 mm

Operating Supply Current: 70 mA

Operating Supply Voltage: 2.4 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
