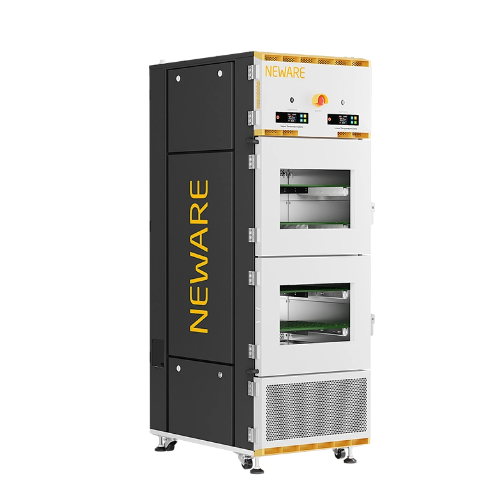

NEWARE MIHW-100-2-160CH Dual-Temperature Zones All-in-One Testing System (200L, 0～60°C)

Nominal content product: 200L (100L)

Inner box size: W 500 mm D 500 mm H 400 mm (single-temperature zone)

Overall dimensions: W 600 mm x D 920 mm x H1920 mm

Net weight of the equipment: About 260kg

Test the environmental conditions: Ambient temperature is + 25℃, relative humidity is 85%, with no sample in the test box (no load)

Temperature range: 0～60℃

Temperature fluctuation degree: 1℃ (equivalent to ± 0.5℃, with no load and stable temperature)

Temperature deviation: ± 2.0℃ (when no load and temperature is stable)

Heat-up time 25℃ 60℃ 30 min (no-load, average nonlinearity)

Cooling down time: 25℃ 0℃ 50 min (no load, average nonlinear)
