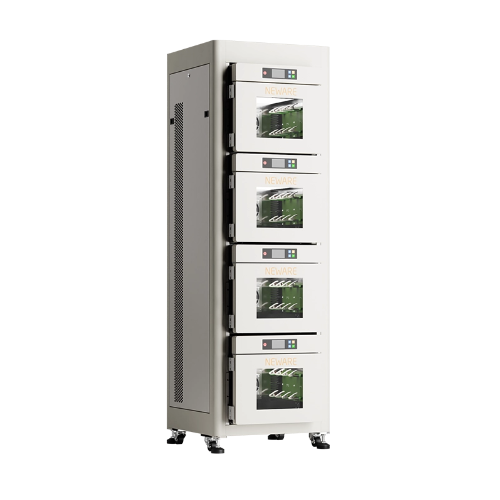

NEWARE MHW-25-S-16CH*4 4 Temperature Zone All-in-One Testing System (0.2KW)

AC Input: AC 220V±10%50Hz(compatible AC110V±10%60Hz)

Single Phase+protective earth ground

Power: 0.2KW

Input Current: 1A(220VAC)/2A(110VAC)

Volume, Size Standard

Volume: 25L

Inner Size: W360mm×D300mm×H235mm

External Size: W440mm×D580mm×H410mm

Weight: About 45kg

Performance

Operating environment: Operating Temperature is +25℃、Relativehumidity≤85%、Under no samples situation

Temperature Range: 15~60℃

Temperature fluctuation: ≤1℃ （noload、temperature stability）

Temperature deviation: ±2.0℃ （noload、temperature stability）

Rise time: 25℃→60℃ ≤40min(No load)

Cooling time: 25℃→15℃ ≤60min(No load)
