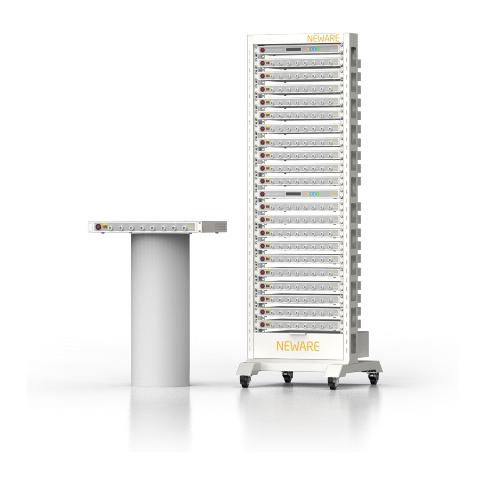

NEWARE CT-4008Q-5V100mA-124 Battery Testing System (5V, 100mA)

Voltage

+ CV output range: 10mV~5V

+ Min discharge voltage: -5V

+ Accuracy: ± 0.01% of FS

+ Stability: ± 0.02% of FS

Current

+ Output range/channel Range 1: 0. 2 μA-0.1mA; Range 2: 0.1mA-1mA;

Range 3: 1mA-10mA; Range 4: 10mA-100mA

+ Accuracy: ± 0.01% of FS

+ CV cut-off current Range 1：0.1μA; Range 2：1μA; Range 3：1μA; Range 4：0.1mA

+ Stability: ± 0.02% of FS

Power:

+ Output power/channel: 0.5 W

+ Stability: ± 0.1% of FS

Time

Current response time: Max rising time:1.5m

s Working step time: ≤(365*24)h/step Time format-00：00：00.000(h、m、s、ms)

Data Record

Data record conditions

+ Min data record interval:10ms

+ Min voltage change：5mV

+ Min current change：40mA

+ Frequency: 100Hz

Charge

+ Charge modes: CC、CV、CCCV、CP

+ Cut-off condition: Voltage、Current、Time、Capacity、-△V

Discharge

+ Discharge modes: CC、CP、CR

+ Cut-off condition: Voltage、Current、Time、Capacity

Pulse

+ Charge: Constant current, Constant power

+ Discharge: Constant current, Constant power

+ Min pulse width: 500ms

+ Pulse counts: Up to 32

+ Chg and Dischg switch: Supported

+ Cut-off condition: Voltage、Time

DCIR: Supported

CH parallel: Supported, in parallel mode pulse function is disabled

Cycles

+ Max cycles: 65535

+ Max steps: 254

+ Nest: 3
