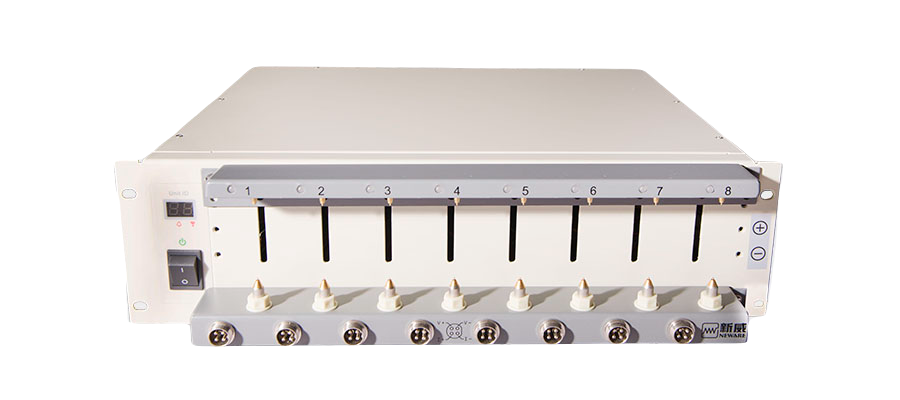

NEWARE CT-4008-5V6A Advance Battery Testing System (0.5mA~6A, 25mV~5V)

Input: 425W,110V±10% or 220V±10%, Single Phase, 50Hz/60Hz

Output:

Voltage: 25mV~5V, ±2.5mV; Discharge to 1.5V default, Discharge to 0V optional

Current: Range 1: 100mA~6A, ±3mA; Range 2: 0.5mA~0.1A , ±50uA

Resolution: AD 16bit, DA 16bit

Data Acquisition:

Frequency: 10Hz Max

Mode:

Min Time Interval: 100ms

Min Voltage Interval: 10mV

Min Current Interval: Range 1: 12mA; Range 2: 0.2mA

Response Time 1msec, 10%-90% Current Range

Operation Mode:

Charge: Constant Current, Constant Voltage, Constant Resistance

Discharge: Constant Current, Constant Power, Constant Resistance

Simulation: Constant Current, Constant Power

End Conditions: Voltage, Current, Time, Capacity, Energy, -δV

Channel Control: Independent

Step Editor:

Cycles: Max 65535

Steps: Max 255

Loops: Max 3 nested loops

Step Time Format: 00:00:00.000 (mm:hh:ss.ms)

Input Impedance: ≥1MΩ

Noise: <75dB

Environment:

Operating: 15℃~40℃, ≤70% RH, No Condensation

Storage: -10℃~50℃, ≤80% RH, No Condensation

Battery Holders Options: Coin Cell Holders, Alligator Clips, Ring Terminal

Dimensions: 443*330*48 (W*D*H mm)
