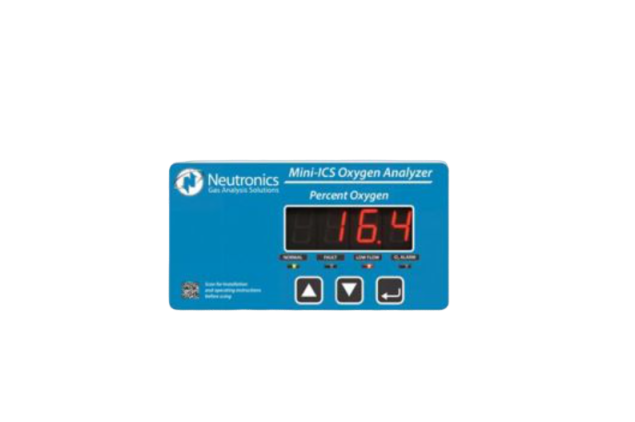

Neutronics Mini-ICS Percent Oxygen Analyzer / Controller (0-50%)

Type: Compact series analyzer

Operating range: 0-1, 0-10, 0-25, 0-50% oxygen, fixed or auto-range

Sensor types: Electrochemical

Accuracy (analyzer): ± 2.0% full scale

Response time: T90 20 seconds

Warm up time: 20 seconds

Relative humidity: 0 to 95%, non-condensing

Operating temperature: 31 to 104° F (0 to 40° C)

Storage temperature: 5 to 122° F (-15 to 50° C)

Power supply: 90 to 264VAC, 47-63 Hz, single phase; 10 to 30VDC, 2.5 watts

Display: 0.75” 7-segment LED digital display, 4 characters Signal interface:

RS-232 serial port

0-1, 0-5, 0-10V analog output

0-20mA, 4-20mA analog output

0-1%: 5.63V; 0-10%: 6.25V; 0-25%: 6.88V; 0-50%: 7.5V

Relay outputs Alarm: field adjustable Form C (DPDT), configurable to fail-safe/non-fail-safe and ascending/descending activation

ICS: field adjustable form C (DPDT), configurable to fail-safe/non-fail-safe and ascending/descending activation

Calibration and fault: non-adjustable Form B (SPST), non-fail-safe activation, Non-configurable

Dimensions Faceplate: 3.75” (9.53mm) height x 7.00” (17.78mm) width

Chassis: 2.81” (7.14mm) height x 5.98” (15.19mm) width x 3.60” (9.14mm) depth

Ratings

Faceplate: NEMA 4 (IP66)

Chassis: NEMA 1 (IP20) Weight 2 lbs.
