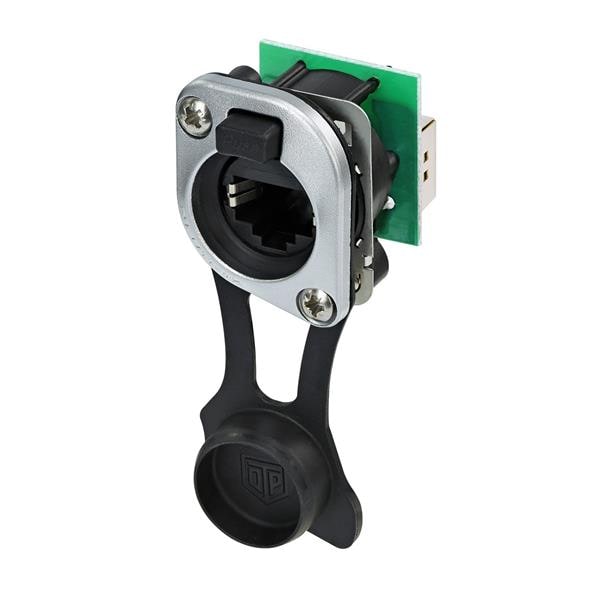

NEUTRIK NE8FDP-TOP XLR CAT5 D PCB Panel Mnt Rcpt Nickel TOP

Color: Black

Gender: Jack (Female)

Shielding: Shielded

USOC Codes: RJ45

Application: 10/100/1000 Base-T

Unit Weight: 28.342 g

Configuration: 1x1

Mating Cycles: 1000 Cycle

Tab Direction: Tab Down

Current Rating: 1.5 A

Mounting Angle: Straight

Mounting Style: Flange Mount

Voltage Rating: 50 V

Contact Material: Phosphor Bronze

Locking Mechanism: Latch-Lock

Termination Style: Solder

Flammability Rating: UL 94 V-0

Performance Category: Cat 5e

Insulation Resistance: 500 MOhms

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 30 C

Number of Positions / Contacts per Port: 8P8C
