General
Dimensions: 3.5 in x 7.8 in x 1.9 in (8.9 cm x 19.8 cm x 4.8 cm)
Weight: 18 oz (0.5 kg)
Battery: Removable, rechargeable lithium-ion battery pack (18.5 Watt-hrs)
Battery Life: Typical operating life is 6 hours; Typical charge time is 3 hours
External AC Adapter/Charger: AC input 90 to 264V AC 48 to 62 Hz input power DC output 15V DC at 1.2 Amps
Display: 2.8 in color LCD (320 x 240 pixels)
Keypad: 12-key elastomeric
Tone Generator: IntelliTone™ digital tone: [500 KHz]; analog tones: [400 Hz, 1 KHz]
Media Access; Copper: RJ-45: 10BASE-T, 100BASE-TX, 1000BASE-T and PoE (IEEE 802.3af and 802.3at)
Media Access; Fiber: SFP Adapter Port supports 100BASE-FX and 1000BASE-LX/ SX/ZX (LRAT-2000 Only)
Cable Tests; Pair lengths, opens, shorts, splits, crossed, straight through, and cable ID
Power over Ethernet (PoE): Single ended testing:
User-defined testing to IEEE 802.3at class 0, 1, 2, 3, 4 without LLDP negation, or 4 with LLDP negotiation
The following PSE PoE parameters are measured:
Pairs used
Received class
PSE type
Unloaded voltage(V)
Loaded voltage (V) (LRAT-2000 with TruePower™)
Unloaded power (W) (LRAT-1000)
Loaded power (W) (LRAT-2000 with TruePower™)
Supporting Operating Systems: Windows® 8.1 and Windows® 10
Minimum hardware requirement:
Processor: 1 GHz or better CPU
RAM: 1 GB or more
Hard Disk: 1 MB available space
Display: 1024 x 768 high color, 32-bit (recommended)
Interface: USB
Enivronmental
Operating Temperature and Relative Humidity: 32°F to 113°F (0°C to +45°C) Note: The battery will not charge if the internal temperature of the tester is above 113°F (45°C)
Operating Relative Humidity (% RH without condensation): 90% (50°F to 95°F; 10°C to 35°C) 75% (95°F to 113°F; 35°C to 45°C)
Storage Temperature: -4°F to 140°F (-20°C to +60°C)
Shock and Vibration: Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop
Safety: EN 61010-1 2nd edition
Safety (LR-AT 2000 only): EN/IEC 60825-1:2007, EN/IEC 60825-2:2004+ A1:2007 (LRAT- 2000 only)
Altitude: 4,000 m; Storage: 12,000 m
EMC: FCC Part 15 Class A, EN 61326-1
Certifications and Compliance: Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association
LinkRunner AT Manager Software
Supporting Operating Systems: Windows® 8.1 and Window®10
Processor: 1 Ghz or better
RAM: 1 GB or more
Hard Disk: 1 GB available space
Display: 1024 x 768 high color, 32-bit (recommended)
Interface: USB

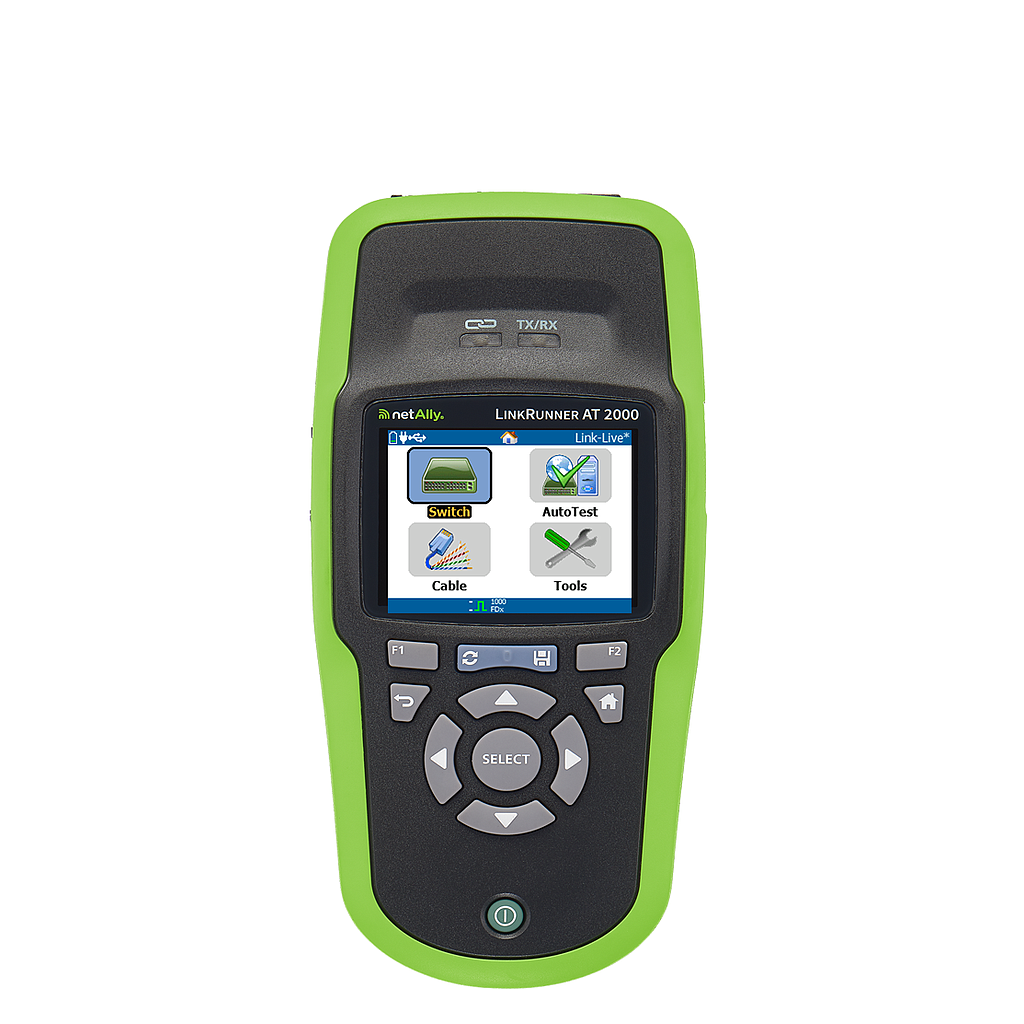

Includes: (1) LinkRunner AT – 2000 tester (twisted-pair and fiber optic) with Li-ION battery, WireView wire mapper #1, RJ-45 coupler, USB cable, Quick Start Guide, and small soft carrying case. Fiber SFP must be purchased separately.
