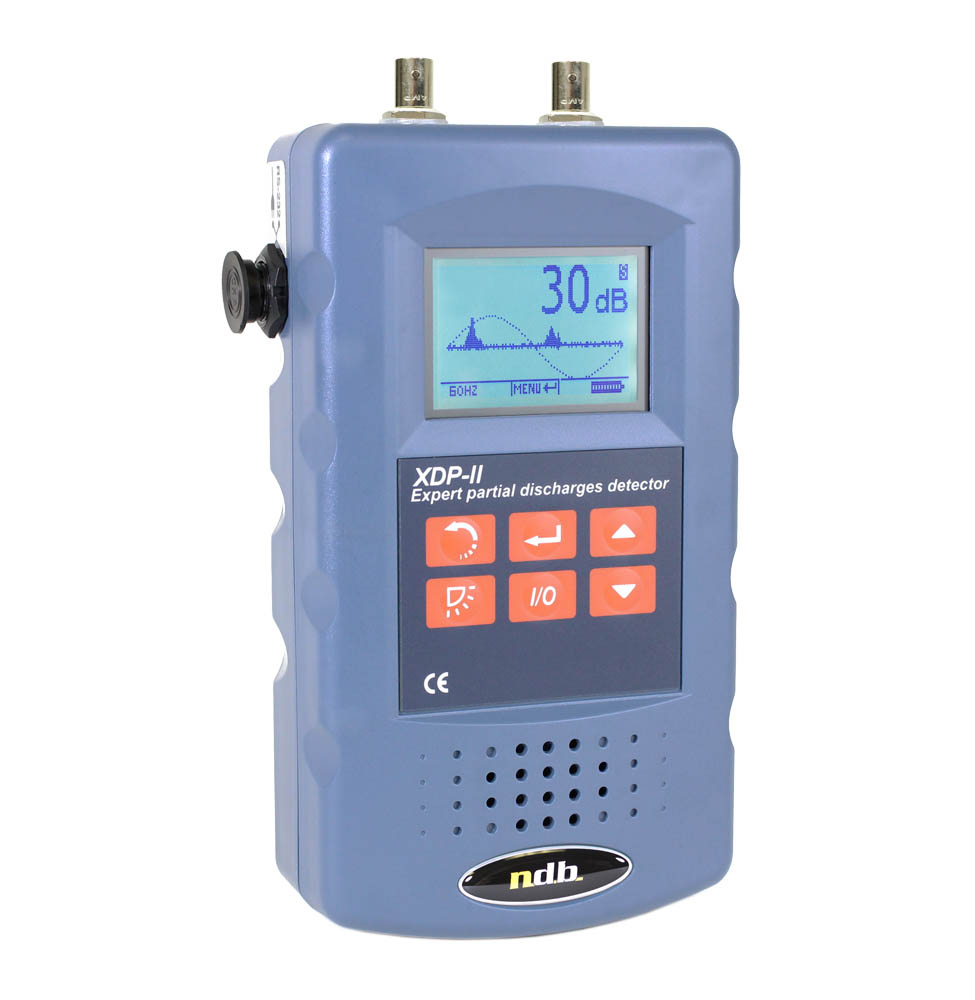

ndb Technologies XDP-II Expert Partial Discharge Detector

Dynamic Range: 60 dB

Data Storage: Over 380 recordings

Accuracy: ± 1 dB

Resolution: 1 dB

Bandwidth: 300 kHz to 70 MHz

Operating Phase Signal Range (50 to 60Hz): 50 to 700mVrms

Sensitivity: 5pC, depending on DUT capacitance

Sampling rate: 30 MHz

Auto shutdown: After 30 minutes of inactivity

Operating Temperature: -20 to 50°C (-4 to 122°F)

Storage Temperature: -20 to 50°C (-4 to 122°F)

Charging Temperature: 0 to 50°C (32 to 122°F)

Humidity: 0 to 95% non-condensing

Liquid Protection: Splash proof

Display: High contrast backlit LCD screen

Autonomy: 7.5 hours

Batteries: NiMH, rechargeable

Charging: 3 hours

Dimensions / Weight: 203 x 114 x 51 mm / 860g
