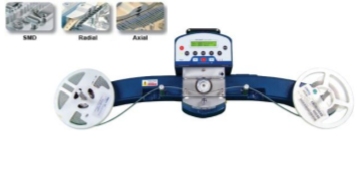

NAMA Magic S Components Smart Counter

Type of parts counter: Semi-Motorized

Count type:

SMD: Yes

Axial, Radial: Yes

01005 inch (2mm pitch) chips: Option

Mark a point on the Axial, Radical tape: Yes

Memory for counting quantity: Yes

Pin no.feature for using machine: Yes

Uppgrade software with PC interface: Option

Count 5000 chips per 40~50 seconds: 50~60s

SMD counting direction: From the right to the left

Bidirectional counting: Yes

Edit company name, date, time: Yes

Interface:

2 x RS-232C Ports: Yes

2 x USB Ports: Option

Keylight mode on the key pad: Yes

Set SMD pitch (4~80mm with 20 steps): Yes

Automatic power sleep mode: Yes

Adjust beep sound: Yes

Adjust LCD contrast: Yes

Anti-static connector: Yes

Rechargeable battery: Option

Bulk scale interface to connect RS232C (order production): Option

Aluminum mold & injection: Yes

100~220V/50~60Hz free power: Yes

Extra DC adapter (Free voltage switching adapter DC 5V/2A): Yes

Standard Accessory:

AC power cable

6 angle screw driver

Operation Manual or CD
