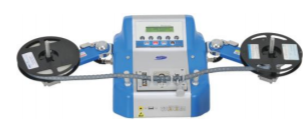

NAMA Giga S Components Smart Counter (SMD)

Type of parts counter: Motorized

Count type: SMD

Pocket check function for SMD chips 8,12,16,24~48mm steps for black pocket reel:Yes

Memory for counting quantity: Yes

Pin no.feature for using machine: Yes

Upgrade software with PC interface: Option

Count 5000 chips per 40~50 seconds: Yes

SMD counting direction: From the right to the left

Bidirectional counting: Yes

Edit company name, date, time: Yes

Interface:

2 x USB Ports (+1)

2 x RS-232C Ports

Keylight mode on the key pad: Yes

Set SMD pitch (4~80mm with 20 steps): Yes

Automatic alignment mode: Yes

Automatic power sleep mode: Yes

Adjust beep sound: Yes

Adjust LCD contrast: Yes

Anti-static connector: Yes

Rechargeable battery: Option

Bulk scale interface to connect RS232C (order production): Option

Aluminum mold & injection: Yes

100~220V/50~60Hz free power: Yes

Extra DC adapter (Free voltage switching adapter DC 5V/2A): Yes

Standard Accessory:

AC power cable

6 angle screw driver

Operation Manual or CD

Datasheet
