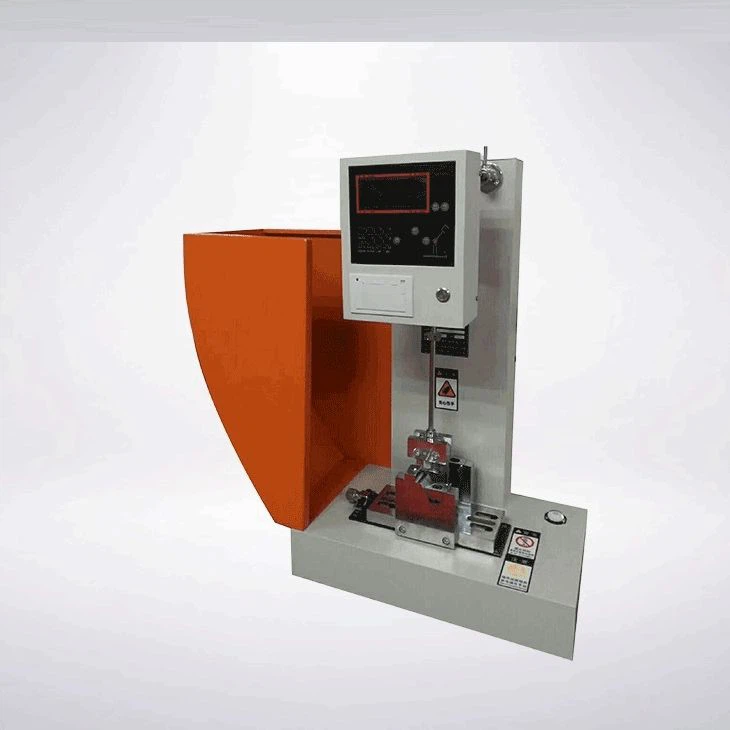

NAKE XBL-5.5D 5J Impact testing machine (5J)
ManufacturerNAKE(View more products from this manufacturer)
ModelXBL-5.5D 5J
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Display mode: color touch screen (Chinese and English)
Angle sensor brand and accuracy: original imported Omron encoder, the accuracy is 0.01°
Energy display accuracy: 0.01J
Impact speed: 3.5m/s;
Pendulum energy: (5.5D) 2.75J, 5.5J
Pendulum lift angle: 150°
Distance from pendulum center to impact blade: 335mm
Distance from the impact blade to the upper plane of the jaw: 22mm
Blade radius: R=0.8±0.2mm
Machine weight: 85kg
Power supply voltage: AC220V±10% 50HZ
